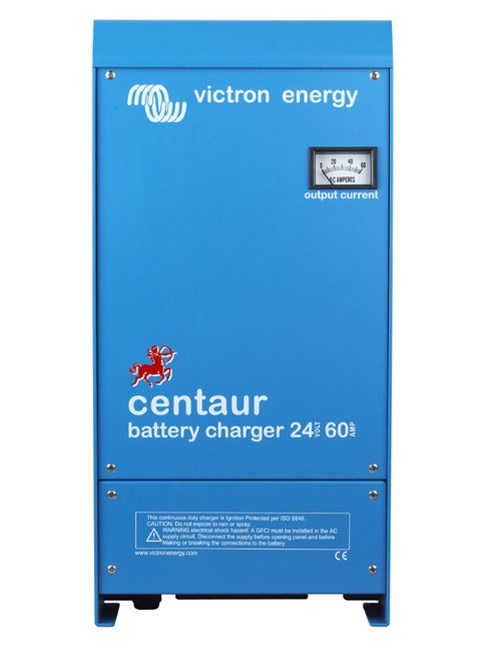

Centaur Charger 24/60(3) 120-240V

Victron Energy CCH024060000 AED 3870.00 AED 3170.00

متوفر

العدد

  • Input voltage (VAC) 90-265
  • Input voltage range (VDC) 90-400
  • Frequency(Hz) 45-65
  • Power factor 1
  • Charge voltage absorption (VDC) 28.5
  • Charge voltage float (V DC) 27.0
  • Output banks 3
  • Charge current (A) 60
  • Charge characteristic IUoU (Three stage charging)
  • Battery capacity (Ah) 240-600
  • Total output ammeter Yes
  • Temperature sensor Internal
  • Forced cooling temperature and current controlled fan
  • Protection Output short circuit, over temperature
  • Operating temp. range - 20 to 60°C (0 - 140°F)
  • Humidity (non-condensing) max 95%
  • Material aluminium
  • Battery-connection M8 studs
  • AC-connection screw-clamp 4 mm² (AWG 6)
  • Protection category IP 20
  • Weight kg (lbs) 12 (26)
  • Dimensions hxwxd in mm (hxwxd in inches) 505x255x130 (19.9x10.0x5.2)
