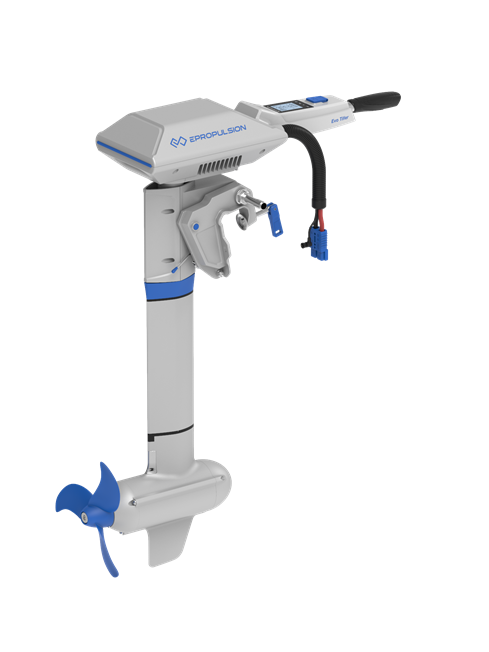

Navy series is the only direct-drive electric outboard at this power
range. They’re made of fewer moving parts, no gearbox required. This
means less vibration, noise free and high reliability.
Specs:
Power: 6 kW / 9.9 HP
Operation Voltage: 48V (Input Range 39V - 60V)
Max Current Draw: 125A
Outboard Weight* : 36 kg / 79.4 lbs (Control weight excluded)
Shaft Length: S: 64 cm / 25.2 inches, L: 76.5 cm / 30.1 inches
Static Thrust: 1243 N / 279.4 lbs (13.4″ × 8.5″ composite propeller)
Propeller RPM: 1500 rpm
Propeller: 12.6″ × 10.8″ 3-blade composite propeller
13.4″ × 8.5″ 3-blade composite propeller
12.6″ × 8.7″ 3-blade aluminum propeller (optional)
Trim / Tilt Angle:0°, 5°, 10°, 15° / 60°
