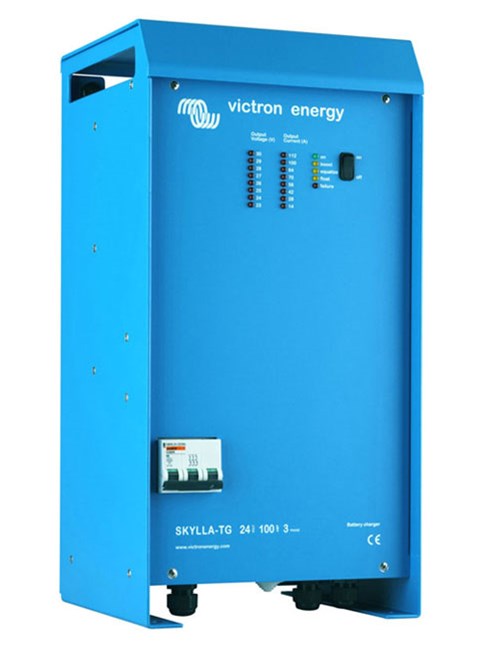

Skylla 24 Volt 100 Amp 3-Phase 400V Battery Charge

Victron Energy STG024100300 AED 8820.00 AED 7425.00

متوفر

العدد

  • Input voltage (VAC) 3 x 400
  • Input voltage range (VAC) 320-450
  • Input voltage range (VDC) NA
  • Frequency(Hz) 45-65
  • Power factor 1
  • Charge voltage absorption (VDC) 28,5
  • Charge voltage float (VDC) 26,5
  • Charge current house batt. (A) (2) 100
  • Charge current starter batt. (A) 4
  • Charge characteristic UoUo (three step)
  • Battery capacity (Ah) 500-1000
  • Temperature sensor √
  • Can be used as power supply √
  • Remote alarm Potential free contacts 60V / 1A (1x NO and 1x NC
  • Forced cooling √
  • Protection (1) a,b,c,d
  • Operating temp. range 40 to +50°C (-40 - 122°F)
  • Humidity (non-condensing) max 95%
  • Material Aluminium
  • Battery-connection M8 studs
  • 230 V AC-connection screw-clamp 2,5 mm² (AWG 6)
  • Protection category IP 21
  • Weight kg (lbs) 23 (48)
  • Dimensions hxwxd in mm (hxwxd in inches) 515x260x265 (20x10.2x10.4)
