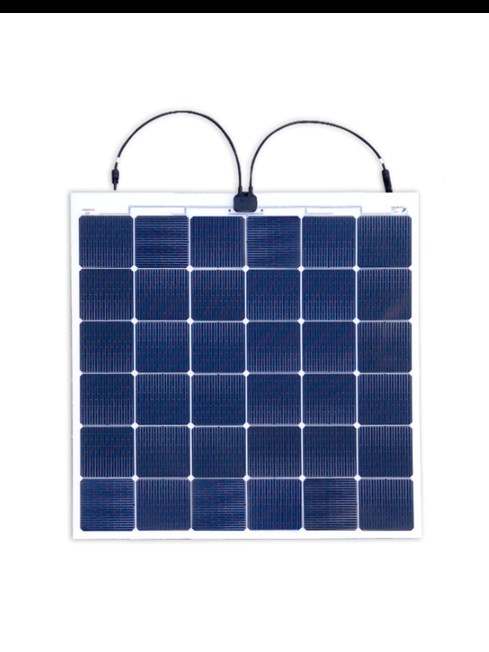

The monocrystalline high-efficiency SR cells are sandwiched by two patented metallic grids. The
grid on the front is carefully tailored to optimize the current harvesting, while the one behind the cell
offers strong mechanical support. The grids essentially form a double shield that acts as a conducting
reinforcement to the solar cell. Extreme crack and bend tolerance are built-in, enabling novel crystalline
silicon architectures. A guaranty of high efficiency and unmatched durability in flexible solar panels.With its lightweight and thin design, this solar panel is highly portable and can be easily transported and installed in different locations.
-
Maximum power [W]
160
-
Max power Voltage Vmp [V]
18.6
-
Max power Current Imp [A]
8.6
-
Open circuit voltage Voc [V]
23.0
-
Short circuit current Isc [A]
9.0
