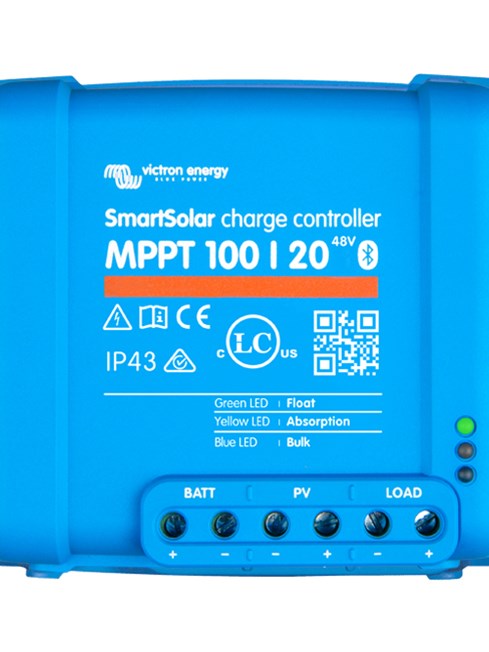

Victron SmartSolar MPPT 100/20_48V

Victron Energy SCC110020160R AED 660.00 AED 300.00

متوفر

العدد

  • Battery voltage 48V
  • Rated charge current 20A
  • Nominal PV power, 48V 1160W
  • Max. PV short circuit current 20A
  • Maximum PV open circuit voltage 100V
  • Automatic load disconnect Yes
  • Peak efficiency 98%
  • Self-consumption 15 mA
  • Charge voltage absorption 57.6 (adjustable)
  • Charge voltage float 55.2V (adjustable)
  • Charge algorithm multi-stage adaptive
  • Temperature compensation -16 mV / °C resp. -32 mV / °C
  • Max. Continuous load current 1A
  • Low voltage load disconnect 44.4V or 47.2V or Battery Life algorithm
  • Low voltage load reconnect 52.4V or 56V or Battery Life algorithm
  • Protection Battery reverse polarity (fuse)Output short circuit/ Over temperature
  • Operating temperature -30 to +60°C (full rated output up to 40°C)
  • Humidity 95%, non-condensing
  • Power terminals 6 mm² / AWG10
  • Protection category IP43 (electronic components), IP22 (connection area)
  • Weight 0.65 kg
  • Dimensions (h x w x d) 100 x 113 x 60 mm
