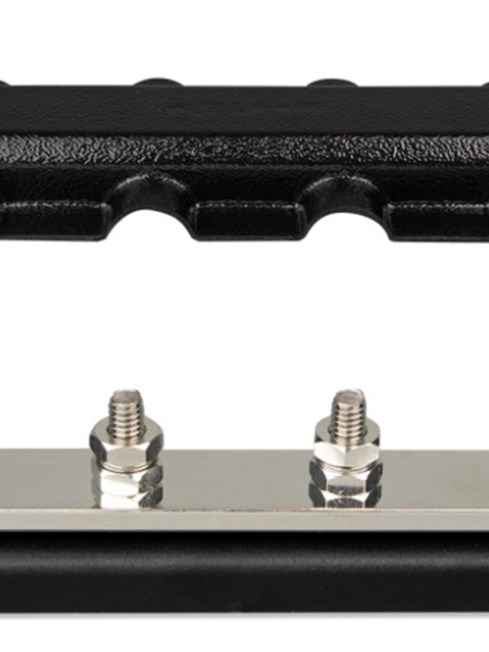

Busbar 250 A with cover
Max. current rating 250 A
Max. Voltage rating 70 VDC
Terminal diameter 5/16 inch / 8 mm
Terminal height 0.67 inch / 17 mm
Terminal material Stainless steel
Hex nut material Tin-plated copper
Recommended torque 110 lbf·inch / 13 N·m
Busbar strip material Tin-plated copper (5 x 24 mm)
Base material ABS, black, UL 94 V-0
Cover material ABS, black, UL 94 V-2
Weight, 4 terminals 1.0 lb / 0,45 kg
Dimensions (hxwxd) (with cover) 48 x 237 x 70 mm
