All Products

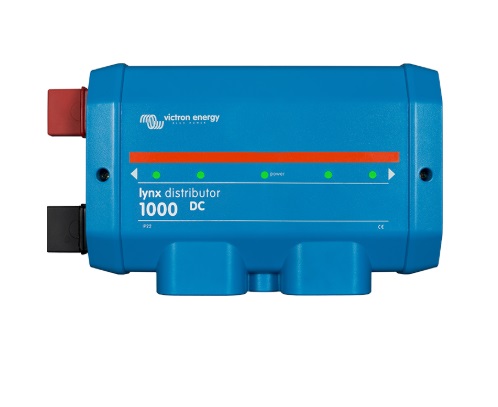

A modular DC bus bar, with locations for four DC fuses. It will monitor the status of each fuse, and indicate its condition with a LED on the front. Contains a positive and negative bus-bar and provides a connection for 4 individual DC equipment circuits, loads or DC groups. It has a space for individual DC fuses per DC group. There is an optional feature of an LED for each fuse to indicate if fuse is blown. When all is OK, only the central LED is green; when a fuse has blown (or is missing) the central and blow fuse circuit LEDs turn red. If you are not using all connection points in your DC distribution, it may be necessary to fit dummy fuses to extinguish the red LEDs. Fuses Uses MEGA fuses. Please note that some MEGA fuses are only rated to 36Volt (suitable for 24V systems), You must use 58/64V rated fuses for 48V systems.
AED750.00
FUSE Holder for MIDI Fuse ( Fuse has to Purchase separately ). Fuse holder is suitable for below models CIP132060010 MIDI-fuse 60A/32V (package of 5 pcs) CIP132080010 MIDI-fuse 80A/32V (package of 5 pcs) CIP132100010 MIDI-fuse 100A/32V (package of 5 pcs)
AED35.00
Modular single fuse holders, for MEGA fuses only
AED45.00
Fuse for FUSE HOLDER FOR MEGA-FUSE
AED110.00
ANL fuse 400A/80V Appr. voltage drop 125 mV Cold resistance 0,3 mΩ
AED50.00
Fuse holder for ANL-fuse
AED40.00

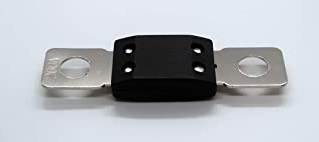

MEGA FUSE 200A -32VDC
AED25.00
MEGA-fuse 500A/32V
Busbar 250 A with cover Max. current rating 250 A Max. Voltage rating 70 VDC Terminal diameter 5/16 inch / 8 mm Terminal height 0.67 inch / 17 mm Terminal material Stainless steel Hex nut material Tin-plated copper Recommended torque 110 lbf·inch / 13 N·m Busbar strip material Tin-plated copper (5 x 24 mm) Base material ABS, black, UL 94 V-0 Cover material ABS, black, UL 94 V-2 Weight, 4 terminals 1.0 lb / 0,45 kg Dimensions (hxwxd) (with cover) 48 x 237 x 70 mm
AED200.00
