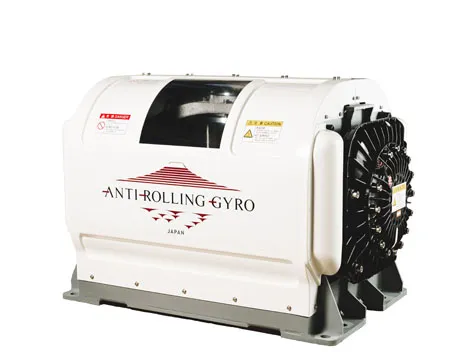

The newest model in the ARG line-up. ARG’s high durability, easy maintenance and simple operation are all included in a smaller footprint. Runs on 12V/24V batteries. Power consumption can be lowered by switching to “Eco-mode”. The smallest size in the ARG series enables smaller outboard motor boats to consider a gyro.
AED0.00
Using a Tohmei Anti Rolling Gyro (ARG) will keep the "Luxury" in your Luxury Yachting experience. The Tohmei Anti Rolling Gyro (ARG) will make your next fishing experience safer, more productive and enjoyable by minimizing trolling and zero speed roll. A Tohmei Anti Rolling Gyro (ARG) is a great investment for any commercial vessel. The ARG is now available for the commercial sector providing low and zero speed stabilization. Provides a comfortable setting for dining and entertaining. Sleep in comfort at the dock or anchored out. Keeps your vessel steady when docking. Effective at trolling and at ‘zero’ speeds. With the Tohmei ARG, you can expect the lowest maintenance in the industry Allow crew and guests to move around safely and enjoy themselves. There are no through hull protrusions that produce drag on your vessel. It is a one piece ‘bolt on’ package. Installing the Tohmei ARG adds to the resale value of your yacht. The ARG stabilizer is easy to install. Just bolt it down to your boat and plug it in! The Tohmei ARG stabilizer is the original ‘Anti Rolling Gyro’ stabilizer. The technology was developed by Mitsubishi originally for the space satellite. Tohmei stands alone as the LEADER in ROLL REDUCTION TECHNOLOGY for pleasure and commercial craft in the world ARG 50T(MSM-5000 T ) is the new model developed for small boats such as centre console boats. ARG50T covers approx. 10tons displacements(depending on GM of the boat) It is the smallest ARG can be used with DC battery. Anti rolling torque : 5000Nm max Rated RPM : 3200rpm Angular moment at rated RPM : 1000Nm sec Spool-up time to rated RPM : 30minutes Spool up power AC motor : 1.0Kva Operating power AC motor : 0.7Kva Input voltage :DC 12V Weight : 236kg Envolope dimensions : Gyro : 525(height) x 750(width) x 520(depth) mm Motor Driver(inverter) : 290(height) x 340(width) x 235(depth) mm
ARG 65T(6500 T -A1) is the new model developed for small boats such as centre console boats. ARG65T covers approx 10tons displacements(depending on GM of the boat) It is the smallest ARG can be used on boat. Anti rolling torque : 6500Nm max Rated RPM : 4200rpm Angular moment at rated RPM : 1300Nm sec Spool-up time to rated RPM : 30minutes Spool up power AC motor : 1.8Kva Operating power AC motor : 1.4Kva Input voltage : AC 210-240V Weight : 236kg Envolope dimensions : Gyro : 525(height) x 750(width) x 520(depth) mm Motor Driver(invertor) : 290(height) x 340(width) x 235(depth) mm
Using a Tohmei Anti Rolling Gyro (ARG) will keep the "Luxury" in your Luxury Yachting experience. The Tohmei Anti Rolling Gyro (ARG) will make your next fishing experience safer, more productive and enjoyable by minimizing trolling and zero speed roll. A Tohmei Anti Rolling Gyro (ARG) is a great investment for any commercial vessel. The ARG is now available for the commercial sector providing low and zero speed stabilization. Provides a comfortable setting for dining and entertaining. Sleep in comfort at the dock or anchored out. Keeps your vessel steady when docking. Effective at trolling and at ‘zero’ speeds. With the Tohmei ARG, you can expect the lowest maintenance in the industry Allow crew and guests to move around safely and enjoy themselves. There are no through hull protrusions that produce drag on your vessel. It is a one piece ‘bolt on’ package. Installing the Tohmei ARG adds to the resale value of your yacht. The ARG stabilizer is easy to install. Just bolt it down to your boat and plug it in! The Tohmei ARG stabilizer is the original ‘Anti Rolling Gyro’ stabilizer. The technology was developed by Mitsubishi originally for the space satellite. Tohmei stands alone as the LEADER in ROLL REDUCTION TECHNOLOGY for pleasure and commercial craft in the world Anti rolling torque : 17500Nm max Rated RPM : 4600rpm Angular moment at rated RPM : 3500Nm sec Spool-up time to rated RPM : 35minutes Spool up power AC motor : single phase 4.3kw/three phase 4.0kw Operating power AC motor : single phase 3.5kw/three phase 3.0kw Input voltage : single phase 220-240V/three phase 200-240v,50/60Hz Weight : 380kg Envolope dimensions : Gyro : 950(length) x 620(width) x 630(Height) mm Motor Driver(invertor) : 400(height) x 350(width) x 187(depth) mm
The ARG250T (MSM-25000T-A1) is the intermediate sized model and flagship of the ARG series. ARG250T covers up to a displacement of 40tons.(depending on GM of the boat). By installing multiple units ,ARG250T can be installed in larger vessel such as 80ft or up to 130ft. Anti rolling torque : 25000Nm max Rated RPM : 3750rpm Angular moment at rated RPM : 5000Nm sec Spool-up time to rated RPM : 40minutes Spool up power AC motor : single phase 4.8kw/three phase 4.3kw Operating power AC motor : single phase 3.5kw/three phase 3.0kw Input voltage : single phase 220-240V 50/60Hz/three phase 200-240v,50/60Hz Weight : 700kg Envolope dimensions : Gyro : 1020(length) x 720(width) x 700(Height) mm Motor Driver(invertor) : 400(height) x 350(width) x 187(depth) mm
The ARG375T (MSM-37500-A1) is the largest model in the ARG line. Capable of producing 37500Nm of anti rolling torque it is well suited for stabilizing boats upto 60tons.by combining more than one 375T, it is perfect for the 120-140ton mega yachts and research vessels. Designed to compete with other finned types of zero speed stabilizers, with higher power demands ,the 375T comparatively,sips its electricity through a coffee straw, reducing need for larger generators. Anti rolling torque : 37500Nm max. Rated RPM : 3250rpm Angular moment at rated RPM : 7500 Nms. Spool-up time to rated RPM : 45 minutes Spool up power AC motor : single phase 5.5kw/three phase 5.2kw Operating power AC motor : single phase 4.5kw/three phase 4.3kw Input voltage : single phase 220-240V 50/60Hz/three phase 200-240v,50/60Hz Weight : 910kg Envolope dimensions : Gyro :1120(length) x 830(width) x 780(Height) mm Motor Driver(invertor) : 450(height) x 400(width) x 200(depth) mm

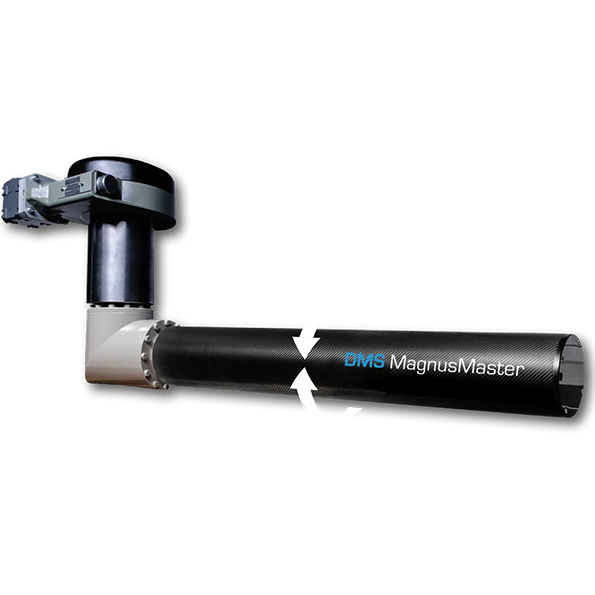

DMS MagnusMaster is an ‘All Electric’ roll damping stabilisation system for low speed cruising displacement and semi-displacement motor yachts up to 30 meters. The system combines state of the art, high-end technology and a universal law of nature, the Magnus effect, discovered and documented by Heinrich Gustav Magnus. Instead of traditional fins, the system uses rapidly rotating underwater cylinders which, depending on the direction of rotation, generate an upward or downward force. This All Electric stabiliser does not use hydraulics and can be inverter driven. Technically perfected by DMS Holland and equipped with new features and innovative stability programming, the DMS MagnusMaster is quite simply incomparable with other systems due to its advanced engineering, versatility of installation and simplicity of operation. DMS MagnusMaster rotary stabilisation utilises the Magnus Effect with rapidly rotating underwater cylinders generating an upward or downward force depending on the direction of rotation. The efficiency and versatility of the system means that for yachts up to 20 tonnes a single rotor may be used. For larger yachts, twin rotor are common and in some applications up to four rotors have been employed for the maximum roll damping capability. Key Features * Effective Stabilisation Typically from 3 to 12 Knots * Colour Touch Screen * Compact & Easy to Locate * No Steering Effect (Transom Mount is Possible) * Easy Installation & Almost No Maintenance * High Static Heel (Best in Following Seas) * Fully CAN Bus for Robust Communication * NMEA Interface with Raymarine Electronics * High Damping (Also at Low Speed) * Easy to Operate (Park / Drive) * 3 Term Controller (Angle / Velocity / Acceleration) * High Momentum (For Increased Damping) * Extensive Diagnostics * Retractable (Less Vulnerability to Damage) -* Retracts Automatically (In Neutral and Reverse) * Virtually Silent Operation (All Electric System)

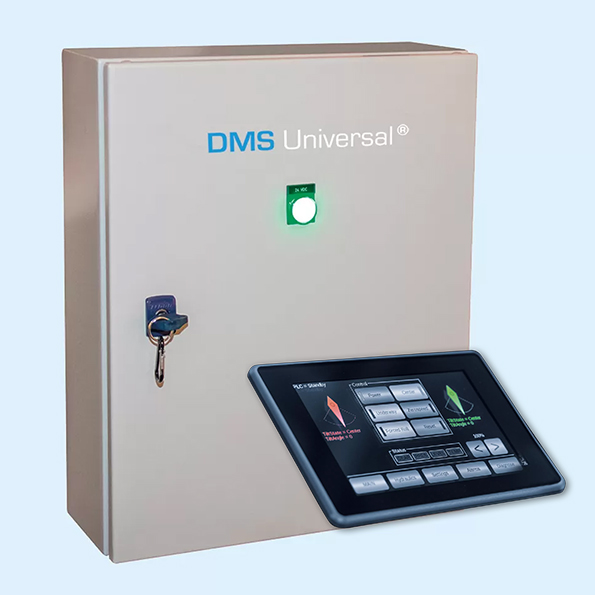

DMS Universal: It is often the case that the control or operating system for a yacht’s existing fin stabilisers is no longer functioning properly due to malfunction, age or simply because replacements parts are no longer available. When the fins themselves and the mechanical & hydraulic parts still all work well, with years of potential operation still left in them, it is a shame to have to opt for a completely new & expensive roll damping system. A solution now exists to replace just the defective control system by installing DMS Universal. This is a modern digital control system developed by DMS Holland featuring the latest technology such as CAN bus communication, colour touch screen and an electronic multi-term controller equipped with ingenious stabilisation algorithms. In many cases this is not just a simple replacement but a major upgrade and improvement to the operation and functionality of the entire system. An environmentally and economically sound solution. Key Features * Modern Technology * Industry Standard Parts * Sunlight Readable Full Colour 5” Touchscreen * Keeps Existing Mechanical & Hydraulic Hardware * Features Ingenious Stabilising Algorithms * Robust CAN Bus Technology * Integration with NMEA0183 and/or NMEA2000 * Contactless & Wear-Free Fin Position Feedback * Modern On-Board Electronics & Hydraulic Valves * Available for 2 or 4 Fin Installations * Full Integration with Power Pack and/or PTO’s * Integration with Ship’s Alarms & Navigation * Can Integrate with Existing Hydraulic Sensors * Robust, Reliable and Non-Intrusive Installation * Environmentally & Economically Sound Option
