Remote on-off connector The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual). All models with adjustable output can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system. All models with adjustable output can be paralleled to increase output current Up to five units can be connected in parallel.
AED325.00
Victron Energy Orion DC-DC converter - 12v in 24v out - 20A - Standard ground version. Voltage converter which steps up from 12vdc to 24vdc. used in applications where 24vdc equipment is required on a 12vdc vessel - 20amp version An ever-increasing amount of electrical equipment is being used on vehicles and boats. Most low-voltage equipment, such as navigation, radios, mobile telephones or car hi-fi systems, are designed for 12 Volts. Victron Energy supplies DC/DC converters which deliver a stable 12 Volt supply from a 24 Volt system. These products are also distinguished by high efficiency, together with absolute safety. An inferior supply can cause irreparable damage to your 12 Volt system, but the use of an Orion voltage converter can prevent such problems. Features Input voltage range: 9-18 V Undervoltage shutdown / restart: 8V / 10V Output voltage: Adjustable (with potentiometer) 20–30V F set 26,4V V Efficiency: 93% Suitable to buffer-charge a battery Continuous / Max output current: 20A / 30A Off load current: < 30mA Operating temperature range (derate 3% per °C above 40°C): -20 to +55°C DC connection: M6 Bolts Other features include Fan assisted cooling (temp. controlled), Remote on-off, Can be connected in parallel
AED480.00
High efficiency Using synchronous rectification, full load efficiency exceeds 95%. IP43 protection When installed with the screw terminals oriented downwards Screw terminals No special tools needed for installation
AED60.00
High efficiency Using synchronous rectification, full load efficiency exceeds 95%. IP43 protection When installed with the screw terminals oriented downwards Screw terminals No special tools needed for installation Specification : Input voltage range 18-35 V Output voltage 12.7 V Efficiency 95% Continuous output current 5 A Max. Output current 7 A Galvanic isolation no Off load current < 20 mA Operating temperature range (derate 3% per °C above 40°C) -20 to +55°C DC connection : Screw terminals Maximum cable cross-section 3,3 mm² AWG12 Weight kg 0,09 Dimensions hxwxd in mm 53x51x27
AED115.00
High efficiency Using synchronous rectification, full load efficiency exceeds 95%. IP43 protection When installed with the screw terminals oriented downwards Screw terminals No special tools needed for installation Specification : Input voltage range 18-35 V Output voltage 12.5 V Efficiency 97% Continuous output current 15 A Max. Output current 20 A Galvanic isolation no Off load current < 35 mA Operating temperature range (derate 3% per °C above 40°C) -20 to +55°C DC connection Screw terminals Maximum cable cross-section 6 mm² AWG10 Weight kg 0,25 Dimensions hxwxd in mm 73x94x45
AED130.00
High efficiency Using synchronous rectification, full load efficiency exceeds 95%. IP43 protection When installed with the screw terminals oriented downwards Screw terminals No special tools needed for installation Specification : Input voltage range 18-35 V Output voltage 12.5 V Efficiency 97% Continuous output current 20 A Max. Output current 25 A Galvanic isolation no Off load current < 45 mA Operating temperature range (derate 3% per °C above 40°C) -20 to +55°C DC connection : Screw terminals Maximum cable cross-section 6 mm² AWG10 Weight kg 0,2 Dimensions hxwxd in mm 73x94x37
AED145.00
Remote on-off connector The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual). All models with adjustable output can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system. All models with adjustable output can be paralleled to increase output current Up to five units can be connected in parallel. The Orion 12/27,6-12: a 24V battery charger (see page 2) To charge a 24V battery from a 12V system. The output voltage of this model can be adjusted with a potentiometer A super wide input range buck-boost regulator: the Orion 7-35/12-3 (see page 2) The Orion 7-35/12-3 is an isolated converter with a very wide input range, suitable for both 12V and 24V systems, and a fixed 12,6V output. Easy to install Delivery includes four Insulated Fastons Female Crimp 6.3mm (eight Fastons in case of the Orion 24/12-40). Low power models: please see Orion-Tr series
AED430.00
Remote on-off connector The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual). All models with adjustable output can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system. All models with adjustable output can be paralleled to increase output current Up to five units can be connected in parallel. Easy to install Delivery includes four Insulated Fastons Female Crimp 6.3mm Specifications: - Input voltage range (V) 9-18 - Under voltage shutdown (V) 8 - Under voltage restart (V) 10 - Output voltage adjustable with potentiometer yes - Output voltage (V): Adjustable 20–30V F set 26,4V - Efficiency (%) 95 - Suitable to buffer-charge a battery : yes - Can be connected in parallel : yes - Continuous output current (A)10 - Max. Output current (A) 20 - Operating temperature range(derate 3% per °C above 40°C) -20 to +55°C - Off load current < 20mA - Remote on-off yes - Dimensions hxwxd in mm 65x88x195 - Weight kg: 0,85
AED205.00
Remote on-off The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual). Adjustable output voltage: can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system. All models are short circuit proof and can be paralleled to increase output current An unlimited number of units can be connected in parallel. IP43 protection When installed with the screw terminals oriented downwards. Input voltage range 10-17V 10-17V 20-35V 20-35V 20-35V 40-70V 40-70V 40-70V Under voltage shut down 7V 7V 14V 14V 14V 28V 28V 28V Under voltage restart 7,5V 7,5V 15V 15V 15V 30V 30V 30V Nominal output voltage 12,2V 24,2V 12,2V 24,2V 48,2V 12,2V 24,2V 48,2V Output voltage adjust range 10-15V 20-30V 10-15V 20-30V 40-60V 10-15V 20-30V 40-60V Output voltage tolerance +/- 0,2V Output noise 2mV rms Cont. output current at nominal output voltage and 40°C 30A 15A 30A 17A 8,5A 30A 16A 8A Maximum output current (10 s) at nominal output voltage minus 20% 40A 25A 45A 25A 15A 40A 25A 15A Short circuit output current 60A 40A 60A 40A 25A 60A 40A 25A Cont. output power at 25°C 430W 430W 430W 480W 480W 430W 430W 430W Cont. output power at 40°C 360W 360W 360W 400W 400W 360W 380W 380W Efficiency 87% 88% 88% 89% 89% 87% 89% 89% Off load current < 80mA < 100mA < 100mA < 80mA < 120 mA < 80mA < 80mA < 80mA Galvanic isolation 200V dc between input, output and case Operating temperature range -20 to +55°C (derate 3% per °C above 40°C) Humidity Max. 95% non-condensing DC connection Screw terminals Maximum cable cross-section 13 mm² (AWG6) Weight 12V input and/or 12V output models: 1,8 kg (3 lb) Screw terminals No special tools needed for installation. Input fuse (not replaceable) On 12V and 24V input models only.
AED700.00
Remote on-off The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual). Adjustable output voltage: can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system. All models are short circuit proof and can be paralleled to increase output current An unlimited number of units can be connected in parallel. IP43 protection When installed with the screw terminals oriented downwards. Screw terminals No special tools needed for installation. Input fuse (not replaceable) On 12V and 24V input models only. Specification Input voltage range 20-35V Under voltage shut down 14V Under voltage restart 15V Nominal output voltage 24,2V Output voltage adjust range 20-30V Output voltage tolerance +/- 0,2V Output noise 2mV rms Cont. output current at nominal output voltage and 40°C 17A Maximum output current (10 s) at nominal output voltage minus 20% : 25A Short circuit output current 40A Cont. output power at 25°C 480W Cont. output power at 40°C 400W Efficiency 89% Off load current < 80mA Galvanic isolation 200V dc between input, output and case Operating temperature range -20 to +55°C (derate 3% per °C above 40°C) Humidity Max. 95% non-condensing DC connection Screw terminals Maximum cable cross-section 13 mm² (AWG6) Weight 1.6 kg Dimensions hxwxd : 130 x 186 x 70 mm
AED405.00
Remote on-off The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual). Adjustable output voltage: can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system. All models are short circuit proof and can be paralleled to increase output current An unlimited number of units can be connected in parallel. IP43 protection When installed with the screw terminals oriented downwards. Screw terminals No special tools needed for installation. Input fuse (not replaceable) On 12V and 24V input models only. Specification Input voltage range 20-35V Under voltage shut down 14V Under voltage restart 15V Nominal output voltage 24,2V Output voltage adjust range 20-30V Output voltage tolerance +/- 0,2V Output noise 2mV rms Cont. output current at nominal output voltage and 40°C 12A Maximum output current (10 s) at nominal output voltage minus 20% : 15A Short circuit output current 30A Cont. output power at 25°C 320W Cont. output power at 40°C 280W Efficiency 89% Off load current < 80mA Galvanic isolation 200V dc between input, output and case Operating temperature range -20 to +55°C (derate 3% per °C above 40°C) Humidity Max. 95% non-condensing DC connection Screw terminals Maximum cable cross-section 13 mm² (AWG6) Weight 1.6 kg Dimensions hxwxd : 130 x 186 x 70 mm
AED220.00
Completely encapsulated: waterproof, shockproof and ignition protected Water, oil or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminium and the electronics are moulded in resin.
AED960.00

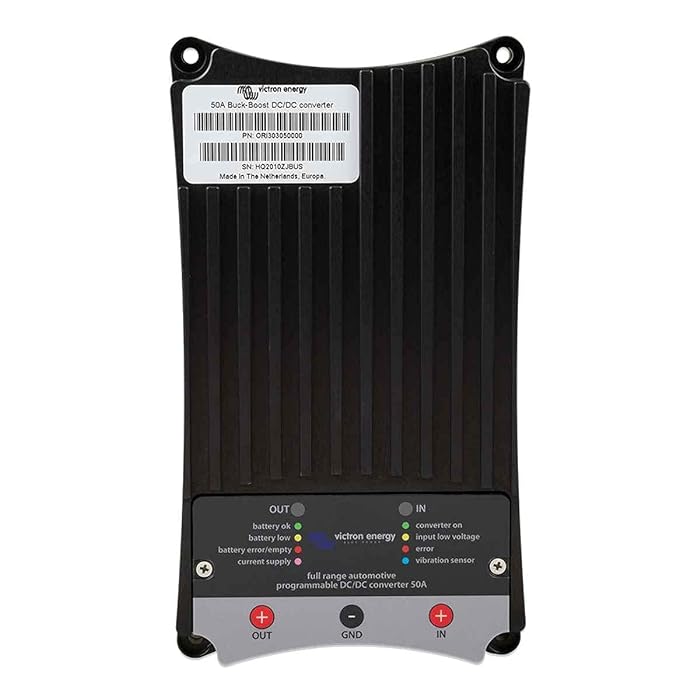

DC-DC Converter for charging a 12/24V service battery in vehicles with an intelligent dynamo. The Buck-Boost DC-DC Converter is a DC-DC converter for charging a 12/24V service battery in vehicles with an intelligent dynamo. Since, when the engine is running, these dynamos (powered by the on-board electronics of Euro 5 and 6 engines) do not always emit the correct charging current, a DC-DC converter is essential for charging the service battery properly.
AED2220.00
