Generators

Fischer Panda Generator Panda 18x PMS 230V-50Hz-s

Fischer Panda Generator 15000x PMS Compact Power

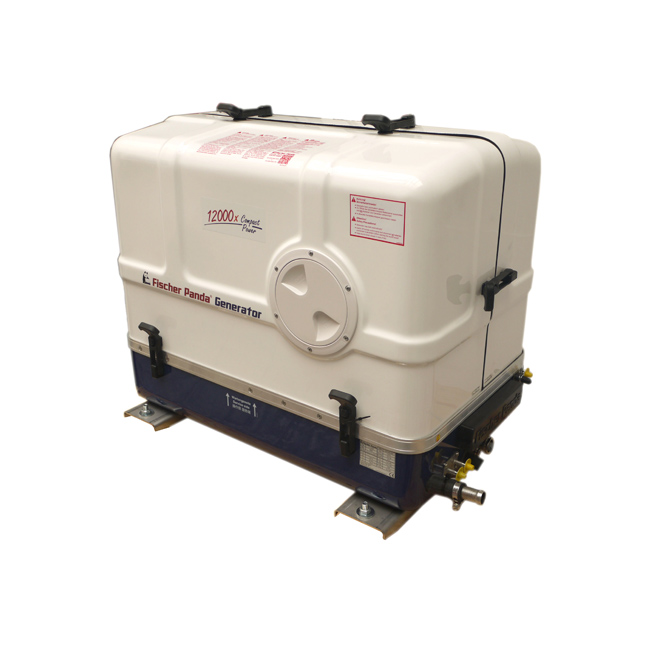

Fischer Panda 12000 X PMS -12kVA- 10.2 KW Generato

Fischer Panda Generator 8000x PMS 230V-50Hz-single

Fischer Panda Generator 4000s Neo PMS 230V-50Hz

Fischer Panda 24xPMS-230V/50Hz/1ph

With 4-cylinder Water-cooled Kubota 1498ccm diesel engine Type: V1505 And Water-cooled Fischer Panda Alternator (Single Phase, 220V / 50 Hz ) Nominal output : 20.4 KW (24.0 KVA at cos phi = 0.85) Continuous output : 18.3 KW (21.5 KVA at cos phi = 0.85) at 3000 RPM Nominal running Amps: 88.7 Continuous running Amps:79.5 Complete set includes: - Two pole relays for isolated ground -12V starts system -12V/40A alternator for battery charging -Engine-driven cooling water pump -Heat exchanger for engine and alternator -Belt driven impeller pump for the raw water circuit -GFK sound insulation capsule 3D (with one layer of heavy lining and one layer of special sound insulation foam) -Remote control panel with on /off / preheat/start LCD hour meter and automatic shut off of the generator in case of alarm -Exhaust and engine temperature switch -Oil pressure switch -Winding temperature switch -Fuel shut off solenoid for engine stop -Fuses for 12V system -Air filter - X controller-GC-S voltage regulation for 230V with actuator for output voltage control -Automatic start booster (ASB) for easier starting of inductive load -12 V fuel pump with inline filter and hose connectors -4 pcs rubber mounts type: Fischer Panda Dimensions : 1010 x 515 x 670 in mm. (L x W x H) Weight: 355 kgs. Sound level: 55db–7m, 65db-3m, 69db-1m

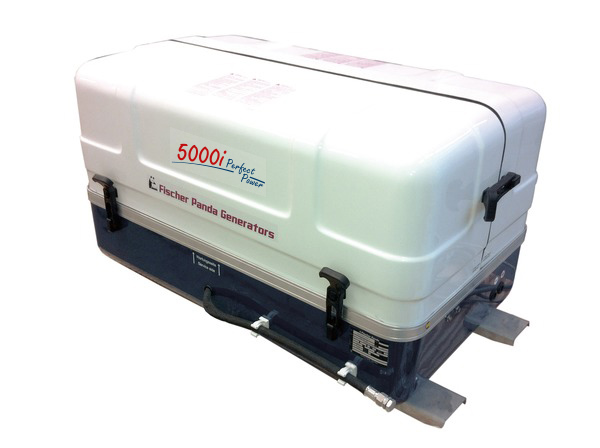

Fischer Panda 5000i PVMV -5kVA(4.2kW) Vehicle Gene

Panda 5000i PVMV-N With 1-cylinder water-cooled Kubota 309 ccm diesel engine Type: EA 300 and Panda Permanent magnet alternator. Nominal output : 4 KW @ 2200 - 2800 rpm Continuous output : 3.5 KW Voltage Stability : 230V + 3% Frequency Stability : 50 Hz + 2% Complete set includes: -12V start system -Engine driven cooling water pump -GFK(Fiber Glass) Sound Insulation Capsule 4Ds. (With two layers of heavy lining and two layers of special sound insulation foam) -Exhaust and engine temperature switch -Oil pressure switch -Oil temperature switch -Winding temperature switch -Fuel shut off solenoid for engine stop -Fuses for 12V system -Water cooled exhaust manifold -Integrated silencer (no external silencers necessary) -Air filter -Integrated automatic start booster (ASB) for easier starting of inductive load -12 V fuel pump with inline filter and hose connectors - Panda iControl with digital display. - Panda PMGi Inverter 7.9kg. Capsule Dimensions : 750 x 420 x 420mm. Weight : 133 kgs Sound level : 52db–7m, 64db-3m, 68db-1m

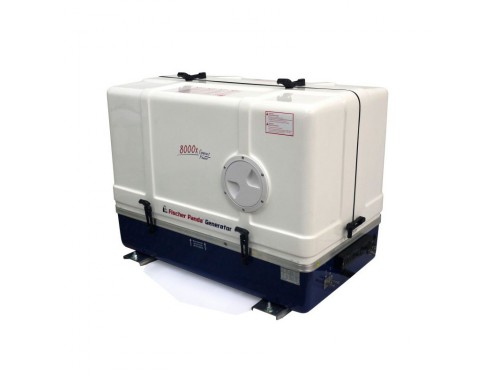

Fischer Panda 8000x PVMV - (6.8kW) GFK Vehicle Gen

With 2-cylinder water-cooled Kubota 479 ccm diesel engine Type: Z482 and water-cooled Fischer Panda alternator. 230V/ 50Hz single phase winding Nominal output : 6.8 KW (8.0 KVA at cos phi = 0.85) Continuous output: 6.1 KW (7.2 KVA at cos phi = 0.85) at 3000 RPM Rated current each Phase in Ampere: 29.56 Continuous current each Phase in Ampere: 26.52 Complete set includes: - 12V start system - 12V/10A alternator for battery charging - engine driven cooling water pump - GFK sound insulation capsule 4DS (With two layers of heavy lining and two layers of special sound insulation foam - X-Control panel - exhaust and engine temperature switch - oil pressure switch - winding temperature switch - fuel shut off solenoid for engine stop - fuses for 12V system - water cooled exhaust manifold - integrated silencer (no external silencers necessary) - air filter - patented VCS voltage regulation for 230 V with actuator for output voltage control - integrated automatic start booster (ASB) for easier starting of inductive load -12 V fuel pump with inline filter and hose connectors Capsule Dimensions(LxWxH) : 865 x 515 x 635mm. Weight : 230 kgs. Sound level : 52db-7m, 62db-3m, 67db-1m

Fischer Panda 15000X PVMV-N Vehicle Generator

With 3-cylinder water-cooled Kubota 780 ccm diesel engine Type: D782 and water-cooled Fischer Panda alternator (230V/ 50Hz single phase winding) Nominal output : 12.9 KW (15.2 KVA at cos phi = 0.85) Continuous output : 11.6 KW (13.7 KVA at cos phi = 0.85) at 3000 RPM Complete set includes: - 12V start system - 12V/10A alternator for battery charging - Engine driven cooling water pump - GRP sound insulation capsule 4DS (With two layers of heavy lining and two layers of special sound insulation foam) - Remote X control panel with on /off / preheat / start LCD hour meter and automatic shut off of the generator in case of alarm - Exhaust and engine temperature switch - Oil pressure switch - Oil temperature switch - Winding temperature switch - Fuel shut off solenoid for engine stop - Fuses for 12V system - Water-cooled exhaust manifold - Integrated silencer (no external silencers necessary) - Air filter - Patented VCS voltage regulation for 230 V with actuator for output voltage control - Integrated automatic start booster (ASB) for easier starting of inductive load - 12 V fuel pump with inline filter and hose connectors Capsule Dimensions: 1010 x 515 x 634mm. Weight : 316 kgs. Sound level : 54db-7m, 64db-3m, 68db-1m

Fischer Panda 12000x PVMV-N 230VAC Vehicle Generat

With 3-cylinder water-cooled Kubota 719 ccm diesel engine Type: D722 and water-cooled Fischer Panda alternator Nominal output : 10.2 KW (12.0 KVA at cos phi = 0.85) Continuous output : 9 KW (11.2 KVA at cos phi = 0.85) at 3000 RPM Complete set includes: -12V start system -12V/10A alternator for battery charging -Engine driven cooling water pump -Remote control panel with on /off / preheat / start LCD hour meter and automatic Shut off of the generator in case of alarm -Exhaust and engine temperature switch -Oil pressure switch -Oil temperature switch -Fuel shut off solenoid for engine stop -Fuses for 12V system -Water-cooled muffler -Integrated silencer (no external silencers necessary) -Air filter -control system: xControl -Patented VCS voltage regulation with actuator for output voltage control -Integrated automatic start booster (ASB) for easier starting of Inductive load -12 V fuel pump with inline filter and hose connectors - Rubber Mounts-4nos Weight: 253 kgs.

Fischer Panda Generator Panda 30x PVMV-N 230V/50Hz

With 4-cylinder water-cooled Kubota 1498 ccm diesel engine Type: V1505TD and water-cooled Fischer Panda asynchronous alternator. (230V/ 50Hz single phase winding ) Nominal output : 25.5 kW (30 kVA at cos phi = 0.85) Continuous output: 23.0 kW (27 kVA at cos phi = 0.85) at 3000 RPM Complete set includes: -12V start system -12V/40A alternator for battery charging -Engine driven cooling water pump - MPL - Stainless steel sound insulation capsule 4DS (With two layers of heavy lining and two layers of special sound insulation foam) -Remote control panel with on /off / preheat / start LCD hour meter and automatic Shut off of the generator in case of alarm -Exhaust and engine temperature switch -Oil pressure switch -Winding temperature switch -Fuel shut off solenoid for engine stop -Fuses for 12V system -Water-cooled muffler -Integrated silencer (no external silencers necessary) -Air filter -Patented VCS voltage regulation for 230 V with actuator for output voltage control -12 V fuel pump with inline filter and hose connectors - Voltmeter - Ampere meter - Frequency meter - Fuse - Fuel and oil gauge - Cooling water expansion tank Overall Dimensions : 1260mm x 560mm x 690mm (L x W x H) Weight : 512 kgs. Sound Level: 55/65/69 (7m/3m/1m)

Fischer Panda 30x PMS Marine Generator 230V/50Hz/1

With 4-cylinder water-cooled Kubota 1498 ccm diesel engine type V1505 TD and water-cooled Fischer Panda alternator. (230V/ 50Hz, single phase winding or 400V /50Hz /3ph) Nominal output : 25.5 kW (30.0 KVA at cos phi = 0.85 ) Continuous output : 22.9 KW at 3000 RPM Complete set includes: -Two pole relays for isolated ground -12V starts system -12V/40A alternator for battery charging -Engine driven cooling water pump -Heat exchanger for engine and alternator -Direct engine driven impeller pump for the raw water circuit -GFK (Fiber Glass capsule 4Ds) (with one layer of heavy lining and one layer of special sound insulation foam) -Remote control panel with on /off / preheat / start LCD hour meter and automatic shut off of the generator in case of alarm -Exhaust and engine temperature switch -Oil pressure switch -Oil temperature switch -Winding temperature switch -Fuel shut off solenoid for engine stop -Fuses for 12V system -Air filter -Patented VCS voltage regulation for 230V with actuator for output voltage control -Automatic starter booster (ASB) for easier starting of inductive load -12 V fuel pump with inline filter and hose connectors -4 pcs rubber mounts type: Fischer Panda Overall Dimensions: 1080 mm x 560mm x 690mm (L x W x H) Weight in kg incl. capsule: 415 kgs. Sound Level: 55/65/69 (7m/3m/1m)

Fischer Panda 30ICx PMS 32kVA 27kW GFK 400V/50HZ/3

With 4-cylinder Water-cooled Kubota 1498ccm diesel engine Type: V1505IC And Water-cooled Fischer Panda Alternator ( Three Phase, 400V / 50 Hz/3ph ) Nominal output : 27.0 kW (31.8kVA at cos phi = 0.85) at 3000RPM Continuous :24.3kW (27kVA at cos phi = 0.85) at 3000RPM Nominal Amps -39 Continuous Amps- 35 Complete set includes: - Two pole relays for isolated ground -12V starts system -12V/40A alternator for battery charging -Engine driven cooling water pump -Heat exchanger for engine and alternator -Belt driven impeller pump for the raw water circuit -GFK sound insulation capsule 3D (with one layer of heavy lining and one layer of special sound insulation foam) -Remote control panel with on /off / preheat / start LCD hour meter and automatic shut off of the generator in case of alarm -Exhaust and engine temperature switch -Oil pressure switch -Oil temperature switch -Winding temperature switch -Fuel shut off solenoid for engine stop -Fuses for 12V system -Air filter -X Control voltage regulation for 230V with actuator for output voltage control -Automatic start booster (ASB) for easier starting of inductive load -12 V fuel pump with inline filter and hose connectors -4 pcs rubber mounts type: Fischer Panda Dimensions: 1010 x 515 x 674 in mm. (L x W x H) Weight: 403 kgs. Sound level: 55db–7m, 65db-3m, 69db-1m

Fischer Panda 45i PMS 36kW/45kVA Marine Generator

With 4-cylinder water cooled Kubota 2434ccm diesel engine Type: V2403T And Fischer Panda Permanent magnet alternator. (400V/50-60Hz Three Phase winding). Nominal Power 36 kW/ 45 kVA at 2800 rpm Continuous Power 32.4kW Variable speed 1500 – 2800 rpm Complete set includes: -12V starts system -12V/40A alternator for battery charging -Engine driven cooling water pump -Heat exchanger for engine -Stainless Steel MPL sound insulation capsule (With one layer of heavy lining and one layer of special sound insulation foam) -Remote control panel with on /off / preheat / start LCD hour meter and automatic Shut off of the generator in case of alarm -Exhaust and engine temperature switch -Oil pressure switch -Oil temperature switch -Winding temperature switch -Fuel shut off solenoid for engine stop -Fuses for 12V system -Air filter -Panda Icontrol with digital display -Panda PMGi AC invertor -12 V fuel pump with inline filter and hose connectors -4 pcs rubber mounts type: Fischer Panda Dimensions: 1130 x 660 x 810 in mm. (L x W x H) Weight: 495 kgs. Sound level: 55db–7m, 65db-3m, 69db-1m
