All Products

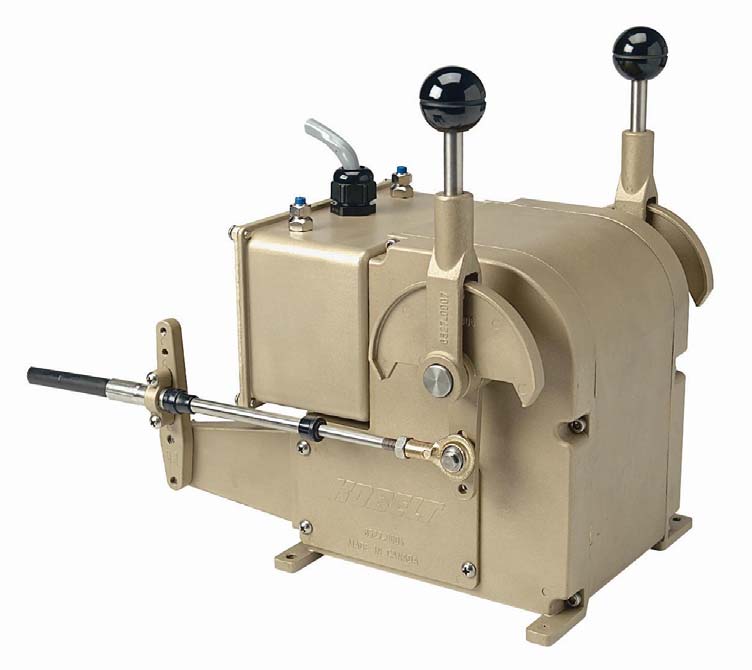

Being a modified version of the regular 6527 actuator, the 6527-S actuator is used exclusively in the Kobelt Mighty Mariner System to operate and position lever-actuated mechanisms. Using the latest technology in propulsion control, this actuator unit forms the heart of the Mighty Mariner Control System. The actuator monitors all input information from the control heads and their associated switch panels, its lever position as well as the synchronizer input. This actuator also controls and positions its Throttle and Clutch levers and communicates with the control stations through panel lights and sonalerts. The 6527-S electronic actuators are constructed in bronze and stainless steel, except for the motor and worm. This unit has a high torque of 180 in-lbs. The basic unit on Model 6527-S comes with manual override and one trim pot per side for stroke adjustment. The actuator does not have an internal resilient link. Hence the stroke must be precisely adjusted to suit the device being controlled. Note: This actuator is not waterproof and therefore should not be immersed in liquid or washed.
AED11794.00
The 6527 electronic actuators are constructed in bronze and stainless steel, except for the motor and worm. It can be used for many marine and industrial applications to operate and position lever actuated mechanisms. The basic control unit comes with manual override and one trim pot per side for adjusting the stroke. This actuator does not have an internal resilient link like our Model 6524. Therefore, the stroke must be adjusted precisely to suit the device to be controlled. This unit has a high torque of 180 in-lbs. Note: This actuator is not waterproof and therefore should not be immersed in liquid or washed.
AED11530.00

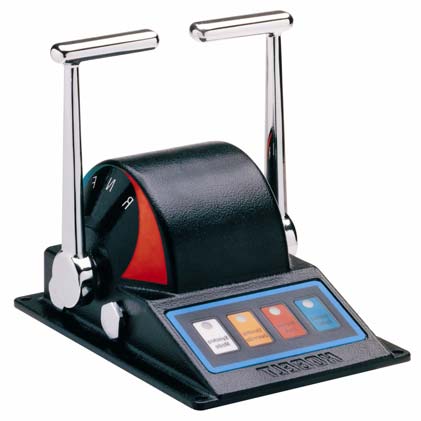

The 6505 Electronic Control Head was developed to accommodate customers with limited space on their control consoles. The 6505, capable of controlling two engines, is of a very compact design yet offers all the features and accuracy of our bigger models. The housing and handles (available in either long or short length) are constructed in all bronze and tainless steel respectively. The standard unit is available in either chrome, black epoxy or polished bronze finish. Optional self-adhesive side scales are available. It incorporates the latest electronic technology with pad buttons, which are water tight, come standard with Station Accept, Station Lock, Throttle Override and Engine Synchronizer. The unit is totally water tight from the top side and can be used anywhere on board ship. The bottom side, however, must be protected from the environmental elements. Ordering Options : B = Black C = Chrome L = Polish Bronze W = White (new) S = Single engine T = Twin engine E = Elegante handle
AED7299.00
This unit has a compact design yet offers all of the features and accuracy of our larger models. Evolved from the popular 6505 model, the 6505S head includes a microprocessor that is used exclusively with the Mighty Mariner system. The unit can be used in combination with the 6527-S clutch/throttle actuator for mechanical control o in conjunction with Model 6503 Electronic Interface unit to provide electric clutch / electronic throttle outputs.The unit can be used on a single or twin engine configuration. (See examples on the reverse page for different system configurations.) The unit incorporates the latest technology with provision for switch pad buttons for Station Select, Station Lock, Throttle Override and Synchronizer. The housing and handles are constructed in all bronze and stainless steel. The standard unit comes in chrome, black epoxy, white or polished bronze finish. The unit is watertight from the top side and can be used anywhere on board ship. However, the bottom side must be protected from the environment.
AED7300.00

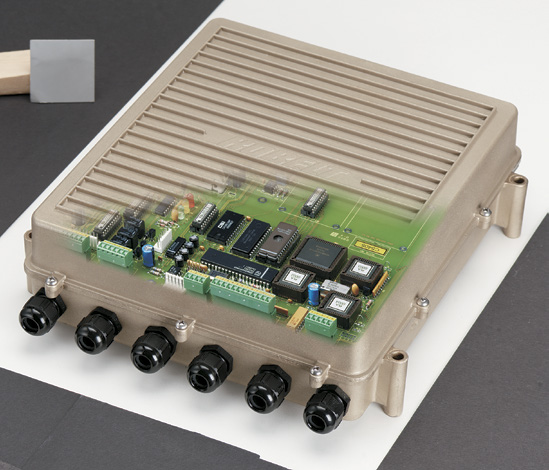

This digital central processor unit accepts up to eight control stations requiring only two communicating wires and can control two main propulsion engines and their respective reverse gears or CP propellers. The 6525 also inputs the control of trolling valves and provides all interlocking for regular propulsion systems, including propeller shaft brakes and throttle boosts. The 6525 unit is the most flexible system and works with all our components. 6525-A (C.P.U. Complete 24 V : Adv. Software) 6525-B (C.P.U. Complete - 24 V : 4-20ma) 6525-C (C.P.U. Complete 24 V : CAT Interface) 6525-D (CPU Complete 24 V : Cummins Qsm (0-5V))
AED18852.00

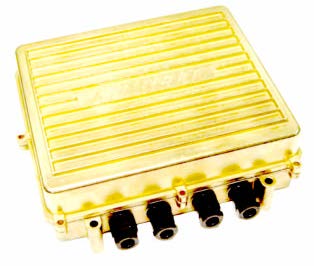

The 6503 unit is a two function control card that will provide electronic throttle output and clutch solenoid control signals in the Kobelt Mighty Mariner control system. It can - monitor all input information from the control heads and their associated switch panels; - monitors its clutch and throttle positions and the synchronizer inputs; - controls and positions its electronic throttle and its electric clutch in accordance with the Control Head lever movement ; - communicates with the control stations through panel lights and sonalerts. The purpose of the 6503 is to operate the clutch solenoid via dry contacts and the electronic throttle signal. The 6503 uses standard Microchip Picprocessor circuitry. All the system adjustments can be maintained through adjustable trimpots and DIP switches. All connections to the 6503 are hard wired into pluggable connectors on the board. The 6503 is housed in a heavy duty enclosure (7173-K box) designed to prevent dust and moisture intrusion. The 6503 has three types of electronic throttle output available : 4-20mA, 0-5VDC and PWM (Pulse Width Modulation). These outputs change proportionately with the station control head lever positioning. The Synchronizer System is adjustable to designate either the Port or the Starboard engine as the Main Engine. Operating range of the 6503 is -10° to +55° Celsius.
AED7155.00
The compact design of this control head allows it to be fitted into small spaces. The upper portion is of a water tight construction and can, therefore, be installed anywhere on board ship. It is made entirely in bronze and stainless steel and is well adapted to the harsh marine environment. The 6509 control head is also available in a single engine configuration. Non-illuminated side decals can be attached to the control head for fixed propulsion applications. The membrane key pad has four standard switches and provides: Station Select Station Lock Overriding Throttle Engine Synchronization Trolling valve options are also available in place of either one of the above four switches. The membrane has back lit lenses that indicate which function is working.
AED9497.00
AED10155.00

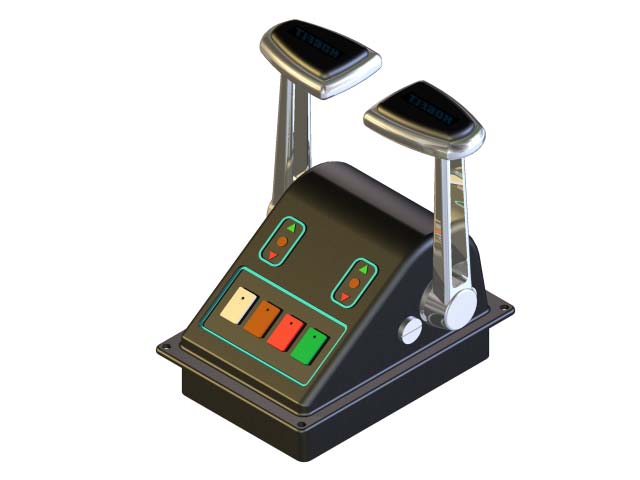

The 6652 “KRRONOS” control head was developed to include the latest innovations - LCD touch screen technology is now introduced to the marine industry. With its sleek and compact design, superior materials in bronze and stainless steel and available in various surface finishes, the 6652 Control is complete with a 3.5” LCD touch screen with display and command control functions including: Station Select, Station Lock, Throttle Override, Engine Synchronization, Simulated Engine RPM and Direction indication, Alarm functions and Station-in-command indication. Features: • Quick and easy installation with simplified set up • Compatible with Kobelt’s advance “Mighty Mariner” system, works in conjunction with both electronic & mechanical-governed engines • User-friendly LCD colour display allows you to interact with the system options • Water-tight enclosure on exposed areas • Special synchronization features – i.e. one lever synchronization mode will reduce fuel usage and decrease noise and vibration • Full control from multiple stations – quickly & safely determines which station is in control with station-in-command indicator • Control head constructed of corrosion resistant materials of bronze & stainless steel • Backed by the best warranty in the industry Ordering Information T = Twin engine application B = Black finish C = Chrome finish G = Gold Plate L = Polished bronze finish W = White finish To order, state model number followed by the desired designation letter codes. For example: 6652-TB is a control head for twin engines and a black finish body.
AED13477.00
The 6570 or 6570S is an alternative version of the 6505 / 6505S control head series used in the propulsion control system and comes with the added feature of a gear feedback indicator showing the gear control position. It offers a compact design and the features of a full size control. It has the same mounting dimensions as the 6505. This control head is suitable to use with our 6525 system as well as the Mighty Mariner system (with model 6570S). The handles are used to control the clutch and throttle operation of the engines. Moving the handle forward or backward approximately 15° will engage the clutch in the corresponding position. Move the handle further will activate the throttle control feature. The feedback indicator will show where the gear is engaged in the desired control position. The source of the feedback must come directly from the gear sensors. The housing and handles are manufactured of bronze and stainless steel. Finish options include chrome, black or white epoxy paint and polished bronze. The unit uses a water resistant keypad but is not recommended for outdoor installation. The keypad offers switches for the standard features: Station Select, Station Lock, Throttle Override and Synchronization. The head comes with the following specifications. # Engines: two (standard) Finish: chrome or black or white or polished bronze Handle: chromed # Potentiometer: one per handle Panel keypad: four switches
AED9531.00
AED10068.00
