This unit has a compact design yet offers all of the features and accuracy of our larger
models. Evolved from the popular 6505 model, the 6505S head includes a microprocessor
that is used exclusively with the Mighty Mariner system.
The unit can be used in combination with the 6527-S clutch/throttle actuator for mechanical control
o in conjunction with Model 6503 Electronic Interface unit to provide electric clutch /
electronic throttle outputs.The unit can be used on a single or twin engine configuration. (See examples on the reverse page for different system configurations.)
The unit incorporates the latest technology with provision for switch pad buttons for Station
Select, Station Lock, Throttle Override and Synchronizer.

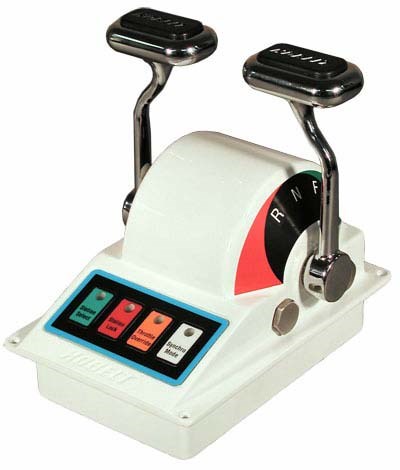

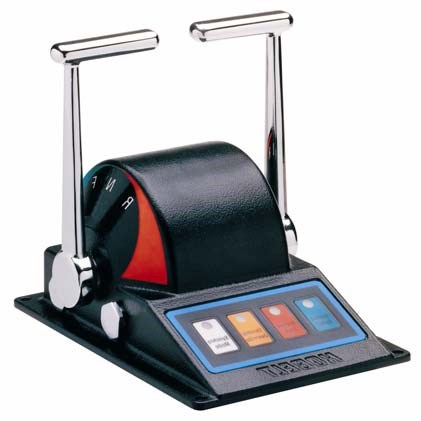

The housing and handles are constructed in all bronze and stainless steel. The standard
unit comes in chrome, black epoxy, white or polished bronze finish.
The unit is watertight from the top side and can be used anywhere on board ship.
However, the bottom side must be protected from the environment.
