All Products

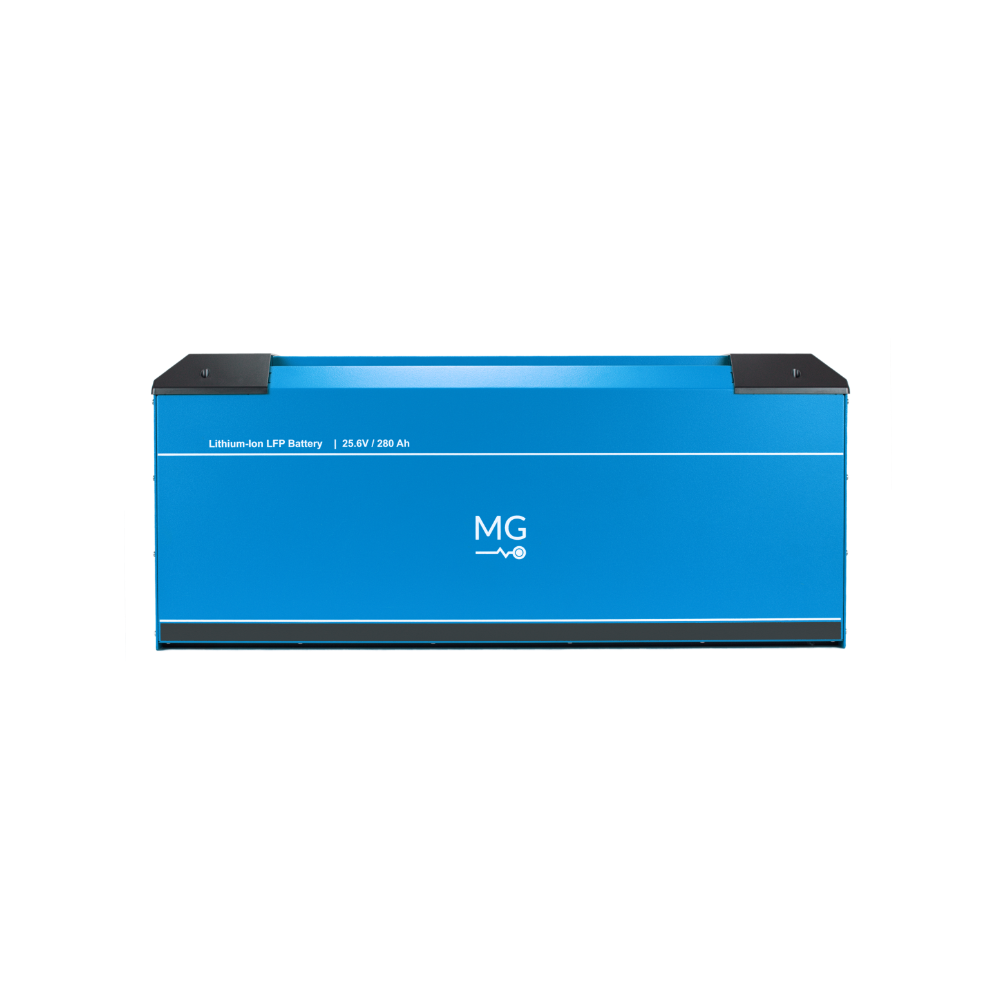

The LFP battery series is based on prismatic cells using battery cells with this robust chemistry provides a battery module with a high energy density and extended cycle life. Battery safety is improved, thanks to the thermal and chemical stability of this particular chemistry. The high charge and discharge capability makes this battery suitable for high power applicatihigh-power
AED0.00
The HE battery series is based on a high energy density battery cell. This means more energy in less weight. The integrated battery management system brings the highest standard on safety and gives insight in the status of the battery. Flexibility in system configuration is created by a modular design. On a system level a voltage range of 25.2 V up to 465 V and a capacity range of 2.5 kWh up to 720 kWh can be created with the 25.2 V modules.
AED22715.00
Maximum number of batteries in series 2 (= 48 V) Maximum number of batteries in parallel 48 Supply voltage range 18 ... 58 VDC Main safety contactor current continuous 400 A Communication CAN-Bus (NMEA2000, SMA, custom on request) IO Aux. output 13,5 V / 1 A, short circuit protection, overcurrent protection Allow-to-charge (switched voltage) 13,5 V / 1 A, short circuit protection, overcurrent protection Allow-to-discharge (switched voltage) 13,5 V / 1 A, short circuit protection, overcurrent protection Allow-to-charge (relay output) 0,8 A @ 60 VDC, potential free Allow-to-discharge (relay output) 0,8 A @ 60 VDC, potential free Programmable contact (relay output) 0,8 A @ 60 VDC, potential free External status signal 13,5 V / 140 mA short circuit protection, overcurrent protection Emergency shutdown input (available on M12 CAN-bus connectors) : Emergency shutdown to open main contactor hardwired. (To order with M12 connectors use M12 as suffix. Example: MGMLV481000M12) Enclosure Material ABS (reinforced) Dimensions 426 x 225 x 117 mm Weight 9,4 kg Environmental Operating temperature range -20 °C to 50°C Humidity Max. 95% (non-condensing) Protection class IP22
AED5050.00
Maximum number of batteries in series 2 (= 48 V) Maximum number of batteries in parallel 48 Supply voltage range 18 ... 58 VDC Main safety contactor current continuous 1000 A Communication CAN-Bus (NMEA2000, SMA, custom on request) IO Aux. output 13,5 V / 1 A, short circuit protection, overcurrent protection Allow-to-charge (switched voltage) 13,5 V / 1 A, short circuit protection, overcurrent protection Allow-to-discharge (switched voltage) 13,5 V / 1 A, short circuit protection, overcurrent protection Allow-to-charge (relay output) 0,8 A @ 60 VDC, potential free Allow-to-discharge (relay output) 0,8 A @ 60 VDC, potential free Programmable contact (relay output) 0,8 A @ 60 VDC, potential free External status signal 13,5 V / 140 mA short circuit protection, overcurrent protection Emergency shutdown input (available on M12 CAN-bus connectors) : Emergency shutdown to open main contactor hardwired. (To order with M12 connectors use M12 as suffix. Example: MGMLV481000M12) Enclosure Material ABS (reinforced) Dimensions 426 x 225 x 117 mm Weight 9,4 kg Environmental Operating temperature range -20 °C to 50°C Humidity Max. 95% (non-condensing) Protection class IP22
AED7565.00
