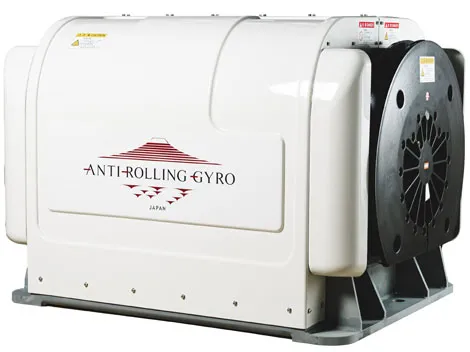

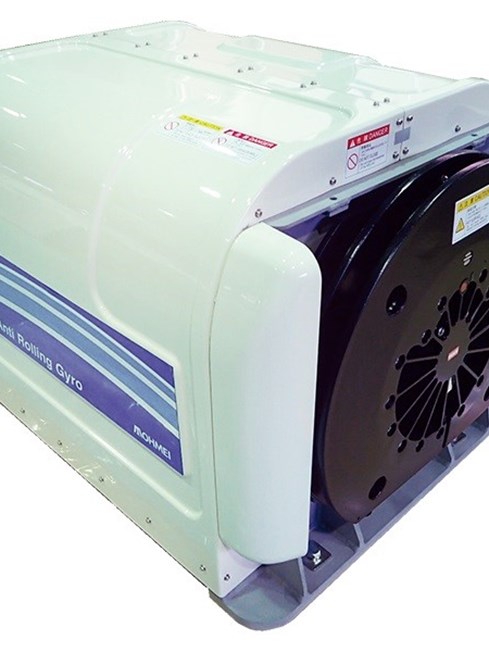

ARG375T Anti-rolling gyro(stabilizer)

The ARG375T (MSM-37500-A1) is the largest model in the ARG line. Capable of producing 37500Nm of anti rolling torque it is well suited for stabilizing boats upto 60tons.by combining more than one 375T, it is perfect for the 120-140ton mega yachts and research vessels. Designed to compete with other finned types of zero speed stabilizers, with higher power demands ,the 375T comparatively,sips its electricity through a coffee straw, reducing need for larger generators. Anti rolling torque : 37500Nm max. Rated RPM : 3250rpm Angular moment at rated RPM : 7500 Nms. Spool-up time to rated RPM : 45 minutes Spool up power AC motor : single phase 5.5kw/three phase 5.2kw Operating power AC motor : single phase 4.5kw/three phase 4.3kw Input voltage : single phase 220-240V 50/60Hz/three phase 200-240v,50/60Hz Weight : 910kg Envolope dimensions : Gyro :1120(length) x 830(width) x 780(Height) mm Motor Driver(invertor) : 450(height) x 400(width) x 200(depth) mm
