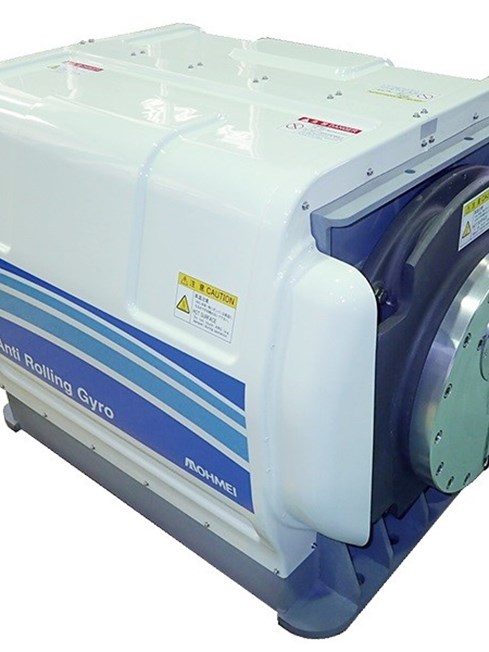

The ARG250T (MSM-25000T-A1) is the intermediate sized model and flagship of the ARG series.
ARG250T covers up to a displacement of 40tons.(depending on GM of the boat).
By installing multiple units ,ARG250T can be installed in larger vessel such as 80ft or up to 130ft.
Anti rolling torque : 25000Nm max
Rated RPM : 3750rpm
Angular moment at rated RPM : 5000Nm sec
Spool-up time to rated RPM : 40minutes
Spool up power AC motor : single phase 4.8kw/three phase 4.3kw
Operating power AC motor : single phase 3.5kw/three phase 3.0kw
Input voltage : single phase 220-240V 50/60Hz/three phase 200-240v,50/60Hz
Weight : 700kg
Envolope dimensions :
Gyro : 1020(length) x 720(width) x 700(Height) mm
Motor Driver(invertor) : 400(height) x 350(width) x 187(depth) mm
