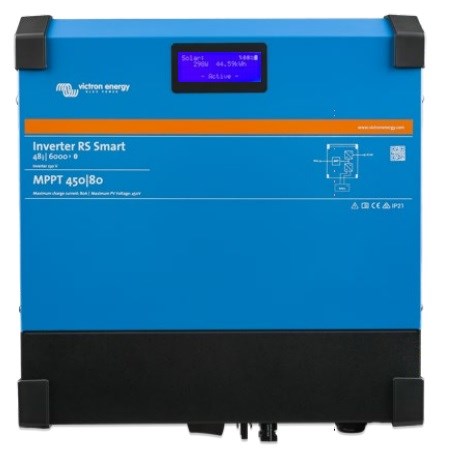

Off-Grid solar inverter : The Inverter RS Smart Solar 48/6000 is a 48V 6kVA Inverter with 450VDC 4kWp PV input. It is used in off-grid solar applications where AC power is required.

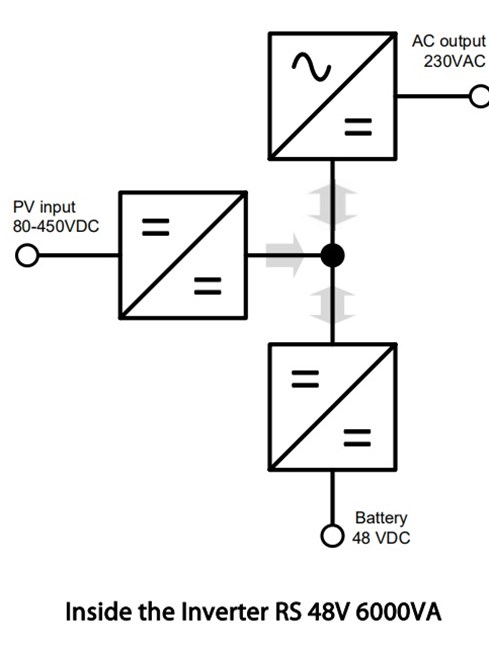

Combination of an inverter, bi-directional DC-DC converter and MPPT
The inverter produces a perfect sine wave, able to supply high powered appliances. It is supplied by a bi-directional DC-DC converter, that can either charge the battery when excess solar power is available or convert from the battery when it is needed.
Wide MPPT voltage range
80 – 450VDC, with a 120VDC PV startup voltage.
Light weight, efficient and quiet Thanks to high frequency technology and a new design this powerful inverter weighs only 11kg.
Display and Bluetooth : The display reads battery, inverter and solar charge controller
parameters. The same parameters can be accessed with a smartphone or other
Bluetooth enabled device. In addition, Bluetooth can be used to
set up the system and to change settings with VictronConnect.

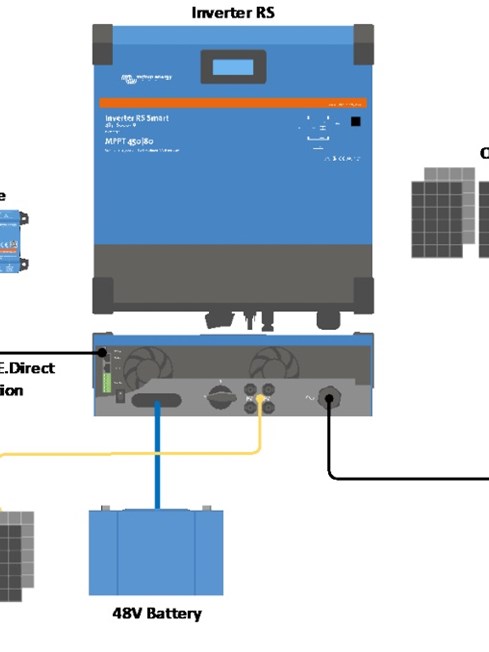

Support for AC and DC coupled PV battery charging : The Inverter RS supports the connection of AC coupled PV inverters on the AC output up to 6kVA, and a total battery charging capacity of up to 100A. Frequency Shift Power Control is enabled out of
the box, without the need for configuration, reducing installation time.
INVERTER
DC Input voltage range 38 – 64 V (6)
Output Output voltage: 230 VAC ± 2%
Frequency: 50 Hz ± 0.1% (1)
Continuous output power at 25°C Increases linearly from 4800 W at 46 VDC to 5300 W at 52VDC
Continuous output power at 40°C 4500W
Continuous output power at 65°C 3000W
Peak power 9 kW for 3 seconds
Short-circuit output current 50A
Maximum efficiency 96.5% at 1 kW load and 94% at 5 kW load
SOLAR
Maximum DC voltage 450V
Nominal DC voltage 300V
Start-up voltage 120V
MPPT operating voltage range 80 – 400V (5)
Maximum DC input current 18A (4)
Maximum PV input power 4000W
Maximum DC charging power 4000W
CHARGER
Charge voltage 'absorption' (V DC) 57.6V
Charge voltage 'float' (V DC) 55.2V
Maximum charge current 100A
Battery temperature sensor Yes
Parallel and 3-phase operation : NO

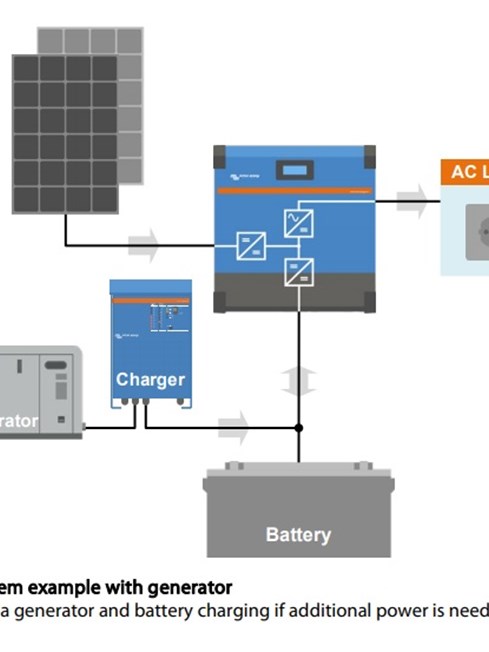

Support AC Input from Grid / Generator : NO (Have to use Battery Charger, Please refer Datasheet /Manual)
Operating temperature range -40 to +65°C (fan assisted cooling)
Protection category IP22
Battery-connection M8 bolts
230 V AC-connection Screw terminals 13 mm² (6 AWG)
Weight 11 kg
Dimensions (hxwxd) 425 x 440 x 125 mm
