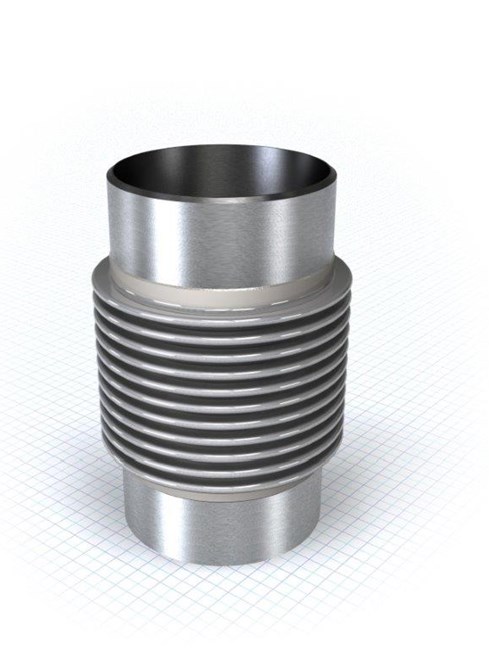

The Balance III is stainless steel expansion joint with carbon steel weld ends,It is used for compensating movements and misalignment in exhaust systems in situations with relatively small lateral movements. Due to the double ply bellows this compensator is more flexible in comparison to similar single ply compensators. The maximum operating temperature of the balance III is +550 degree C , the maximum working pressure 2.5bar (20 degree C.) SS expansion joints AISI321,Double ply bellows Carbon steel weld ends.
SS expansion joints AISI321,Double ply bellows
Carbon steel weld ends.
Long length
