The Peak Power Pack is a complete substitute for heavy lead acid batteries in applications where high currents occur for short time.
Being primarily meant for caravan movers, it is equipped with a built in charger allowing charging from the vehicle electrical system whilst travelling with the caravan. This way the pack will be fully charged upon arrival to the camping site.

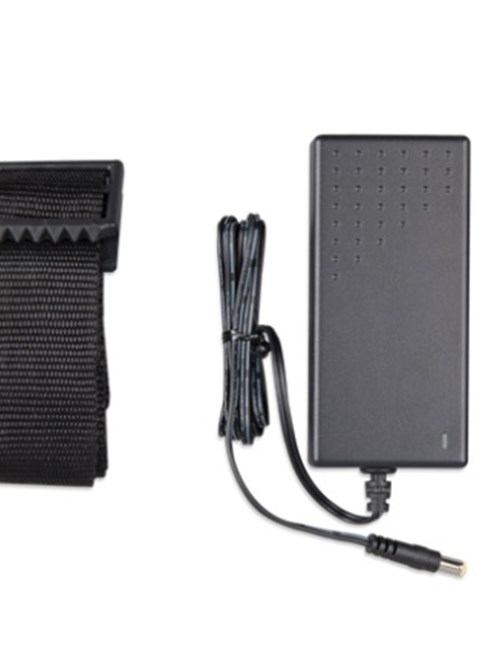

If necessary, the charging is possible using the supplied adapter via a grid outlet.
Charging from a solar panel is also possible.
*Lightweight, high-performance battery.
*Space-saving.
*Maintenance-free.
*Built-in solar energy, regulating and charge unit.
*Can be kept in storage for a year (low self-discharge).
*Regulating system for extra-long service life.
*Li-ion system with internal charger.

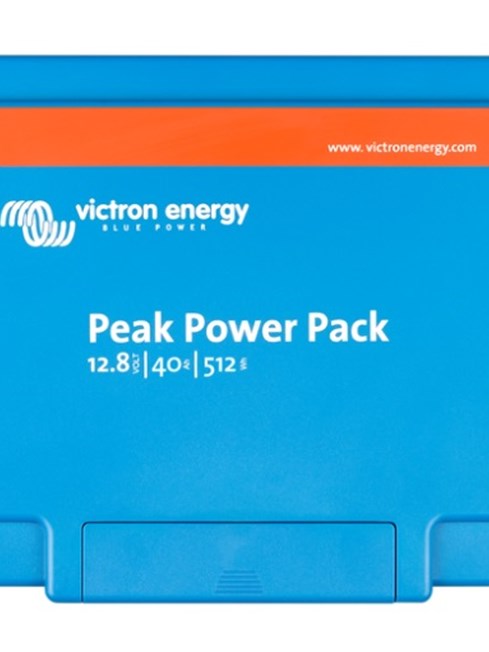

Peak Power Pack PPP-40
Capacity 40Ah
Stored energy 512Wh
Battery type Lithium-ion (LiFePO4)
Nominal voltage 12.8V
Self-discharge when activated < 13 Ah /year (< 1.4 mA)
Self-discharge in storage mode < 6.5 Ah /year (< 0.7 mA)
Output 1: high capacity “mover”
Continuous output current 150A
Maximum output current (10 seconds) 200A
Short-circuit current 300A
Safety features :: Overload / short-circuiting / temperature / excessive discharge
Maximum charging current :: 20A (no protection)
Recommended charging voltage 14V (no protection)
Maximum charging voltage 14.2V (no protection)
Maximum cable diameter 16mm² (screw clamps)
Output 2: on-board power network “domestic”
Continuous output current 30A
Maximum output current (10 seconds) 50A
Short-circuit current 80A
Safety features : Overload / short-circuiting / temperature / excessive discharge
Maximum charging current : 10A (no protection)
Recommended charging voltage : 14V (no protection)
Maximum charging voltage : 14.2V (no protection)
Maximum cable diameter : 6mm²(screw clamps)
Input 1: “car/solar”
Input voltage range 11 V < Vin < 25 V
Current limitation 7A
Input 2: “adapter”
Output voltage 15V
Output current 3A
Input voltage 110 / 230 V 50 / 60 Hz
General
Operation Multifunctional push-button with dual-colour LED
VE.Direct port Communication with a smartphone (VE.Direct Bluetooth Smart-dongle required)
Connection to a PC (VE.Direct to USB cable required)
Operating temperature Battery charging: 0°C to 40°C Battery discharge: -20°C to +40°C Storage: -20°C to +40°C
(charging and discharging not possible outside the given temperature range)
Humidity (no condensation) Max. 95%
Weight 8.6kg
Dimensions (h x w x d) 212 x 190 x 172 mm
Standards
Safety NEN-EN-IEC 60335-1, NEN-EN-IEC 60335-2-29, NEN-EN-IEC 62109-1
Emission / Immunity NEN-EN 55014-1, NEN-EN 55014-2, NEN-IEC 61000-3-2, NEN-IEC 61000-3-3, NEN-EN 50498
