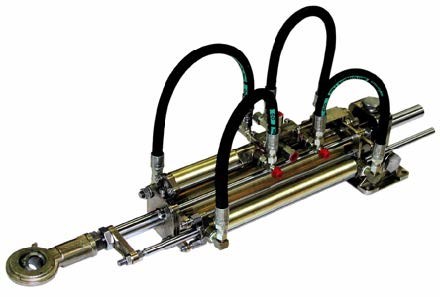

7065-S FULL POWER FOLLOW UP CYLINDER

This cylinder is constructed entirely in bronze and stainless steel. It is essentially an extended
model of our Model 7065 equipped with servo valve for full power follow up (power assisted)
steering. The main cylinder bore is 2½” and the piston rod is made of 1” chromed stainless steel.
Rated at a maximum operating pressure of 1500 psi, they are currently only available in a
balanced cylinder configuration.
When a single cylinder is not sufficient to provide the required rudder torque, they can be installed
in a twin cylinder configuration whereby the 7065-S would serve as a master with a second
cylinder of the same stroke.
These cylinders provide simplicity in installation, effortless control and years of trouble-free
service due to their design and construction.
Design pressure: 1500 psi
Refer to Model 7065 for other technical information.
