HOUGHTON BELAIRE 3500M Roof Top AIR CONDITIONER

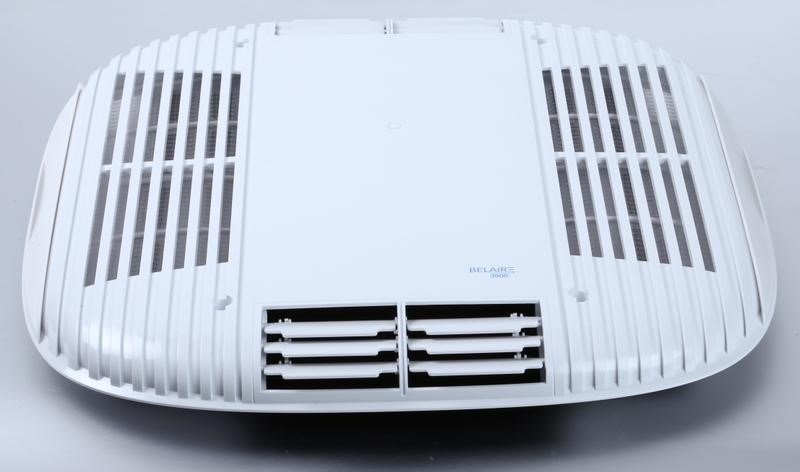

The Houghton Belaire 3500M is a large capacity air conditioner ideal for the harsh climate. The ultra-low plenum has an elegant design that complements modern interiors. Features an easy to read LED display showing temperature and mode. The plenum offers both concentrated and distributed air delivery modes. Distributed air delivery can take the conditioned air to specified area through air duct. The 3500 model has an attractive streamlined canopy design to perfectly integrate with modern design.

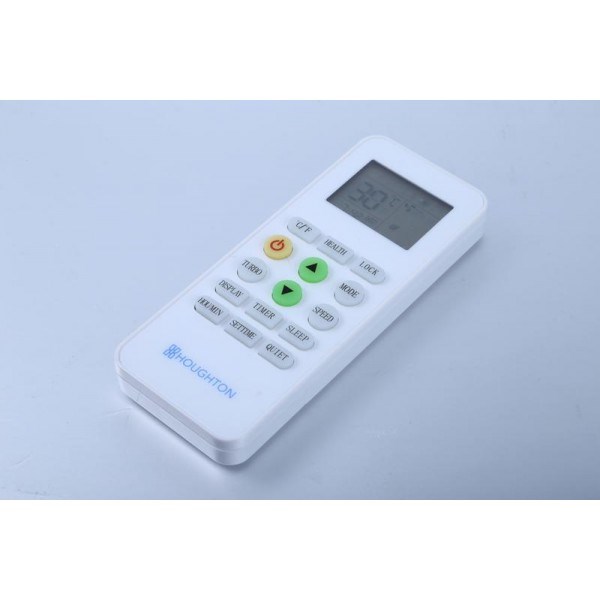

A classical remote control with cooling, heating, dehumidifying, dry, sleep and timing functions. Patented three speed, ultra-quiet, high efficiency fan. The large outdoor axial fan draws air to exchange heat, leading to highly efficient, powerful performance. Patented technology to provide thermal protection to the evaporator.
Patented spiral retractable duct allows easy installation without cutting. Isolation eradicates condensation while optimizing power and performance. Excellent reverse cycle performance allows the 3500M to operate in temperatures as low as minus 5 degrees Celsius and as high as 50 degrees Celsius. Features intelligent defrosting technology.
Power Supply
|
220-240V |
Rated Cooling Capacity
|
3500W-12000BTU |
Rated Heating Capacity
|
3500W |
Rated Current for Cooling
|
5.6A |
Rated Current for Heating
|
5.2A |
Maximum Airflow
|
150l/s |
Installed weight
|
38.0kg |
Outdoor unit dimensions
|
998x680x340mm |
Plenum unit dimensions
|
557x536x43mm |
Roof opening
|
360x360 |
