BYD Battery-Box Premium LVS 4kWh, 51.2 V

SKU Code: LVS 4kWh, 51.2 V
Brand: BYD
Category: BYD Lithium Batteries

AED 11000.00 AED 10000.00

Excluding 5% VAT

Out of stock

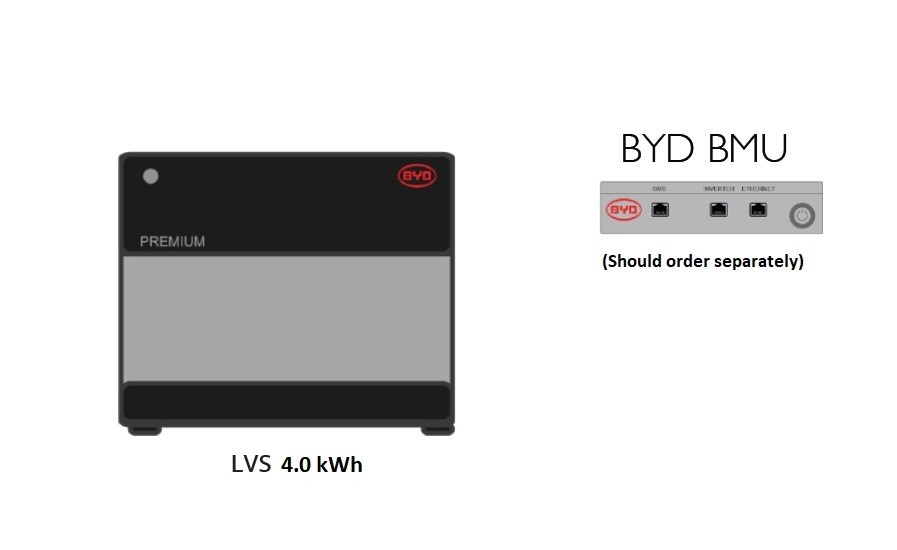

Battery Module : LVS (4 kWh, 51.2 V, 45 kg)
Number of Modules : 1
Usable Energy [1]: 4 kWh
Max Cont. Output Current [2] : 65 A
Peak Output Current [2]: 90 A, 5 s
Dimensions (H/W/D) : 478 x 650 x 298 mm
Weight: 64 kg
Nominal Voltage: 51.2 V
Operating Voltage: 40-57.6 V
Operating Temperature: -10 °C to +50°C
Battery Cell Technology: Lithium Iron Phosphate (cobalt-free)
Communication: CAN / RS485
Enclosure Protection Rating: IP55
Round-Trip Efficiency : ≥95%
Scalability [3] : Max. 64 Modules in Parallel (256 kWh)
Certification : VDE2510-50 / IEC62619 / CE / CEC / UN38.3
Applications : ON Grid / ON Grid + Backup / OFF Grid
Compatible Inverters: Refer to BYD Battery-Box Premium LVS Minimum Configuration List
