Cushy foot

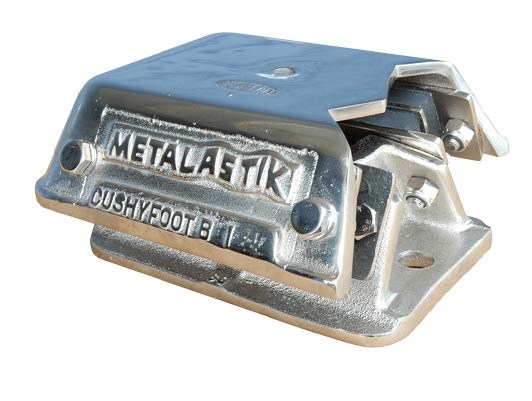

Cushyfoot® mountings have two rubber elements, used in shear and compression, to provide excellent stiffness characteristics for the isolation of a wide range of vibration frequencies.
There are three sizes, 17-0290 for loads up to 230 kg per mounting, 17-0213 for loads up to 1250 kg and
17-0346, which will carry up to 1280 kg per mounting, but will provide up to 16 mm static deflection.
The Cushyfoot mounting benefits from the following

Features:
• A wide load range from 50 to 1280 kg
• Clear branding for product identification
• Strong casting for safety and reliability
• Dissimilar horizontal stiffness gives optimum isolation and motion control

Typical applications Include:
• Diesel engines
• Generator sets
• Compressors
• Fans
• Hydraulic units
• Lift machinery
