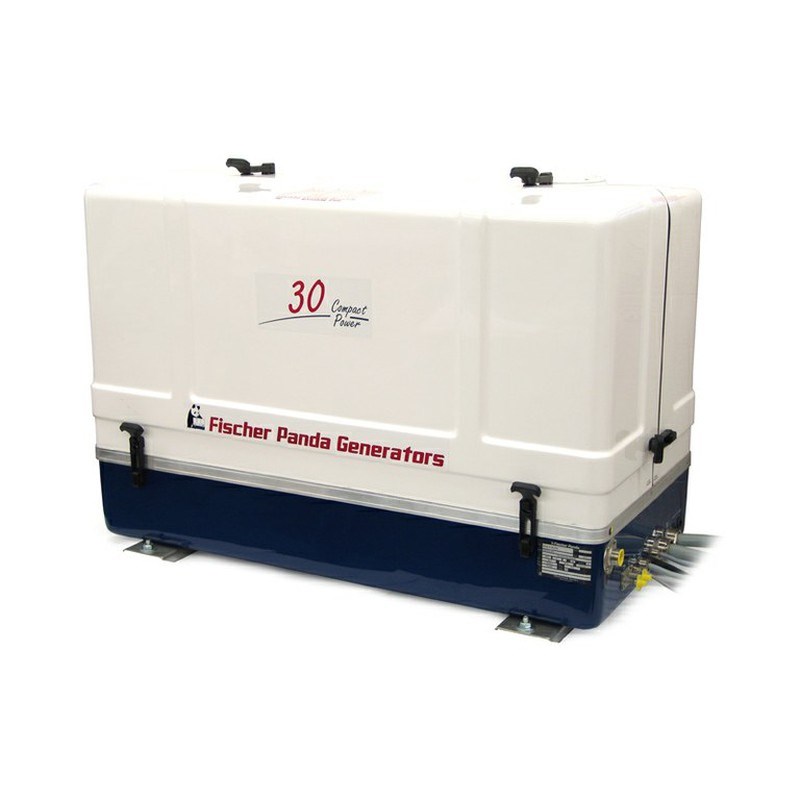

Fischer Panda 30x PMS Marine Generator 230V/50Hz/1

With 4-cylinder water-cooled Kubota 1498 ccm diesel engine type V1505 TD
and water-cooled Fischer Panda alternator.
(230V/ 50Hz, single phase winding or 400V /50Hz /3ph)
Nominal output : 25.5 kW (30.0 KVA at cos phi = 0.85 )
Continuous output : 22.9 KW at 3000 RPM
Complete set includes:
-Two pole relays for isolated ground
-12V starts system
-12V/40A alternator for battery charging
-Engine driven cooling water pump
-Heat exchanger for engine and alternator
-Direct engine driven impeller pump for the raw water circuit
-GFK (Fiber Glass capsule 4Ds)
(with one layer of heavy lining and one layer of special sound insulation foam)
-Remote control panel with on /off / preheat / start LCD hour meter and automatic
shut off of the generator in case of alarm
-Exhaust and engine temperature switch
-Oil pressure switch
-Oil temperature switch
-Winding temperature switch
-Fuel shut off solenoid for engine stop
-Fuses for 12V system
-Air filter
-Patented VCS voltage regulation for 230V with actuator for output voltage control
-Automatic starter booster (ASB) for easier starting of inductive load
-12 V fuel pump with inline filter and hose connectors
-4 pcs rubber mounts type: Fischer Panda
Overall Dimensions: 1080 mm x 560mm x 690mm (L x W x H)
Weight in kg incl. capsule: 415 kgs.
Sound Level: 55/65/69 (7m/3m/1m)
