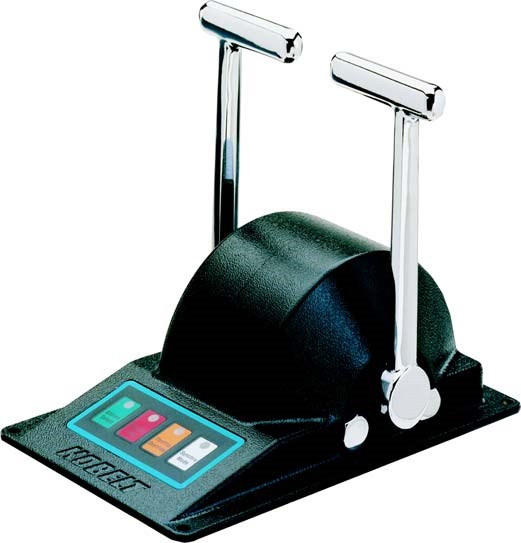

MODEL 6509 INTEGRATED ELECTRONIC CONTROL HEAD(6525

The compact design of this control head allows it to be fitted into small spaces. The upper
portion is of a water tight construction and can, therefore, be installed anywhere on board ship.
It is made entirely in bronze and stainless steel and is well adapted to the harsh marine
environment.
The 6509 control head is also available in a single engine configuration. Non-illuminated side
decals can be attached to the control head for fixed propulsion applications.
The membrane key pad has four standard switches and provides:
Station Select
Station Lock
Overriding Throttle
Engine Synchronization
Trolling valve options are also available in place of either one of the above four switches. The
membrane has back lit lenses that indicate which function is working.
