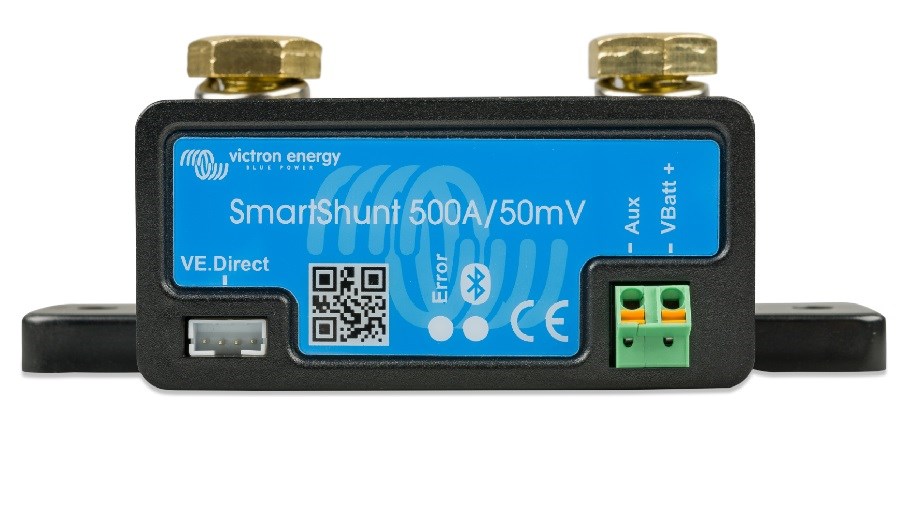

The SmartShunt is an all in one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect App on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.
Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.
The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.
The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.
Differences compared to BMV712 Battery Monitor
- No programmable visual and audible alarm.
- No programmable relay.

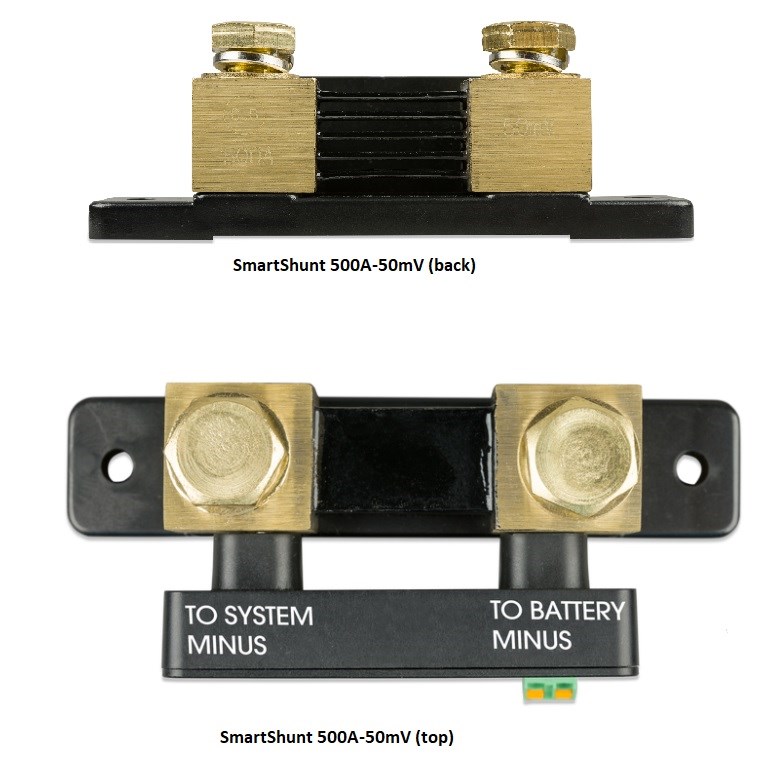

SmartShunt 500A
Supply voltage range 6,5 - 70 VDC
Current draw < 1mA
Input voltage range, auxiliary battery 6,5 - 70 VDC
Battery capacity (Ah) 1 - 9999 Ah
Operating temperature range -40 +50°C (-40 - 120°F)

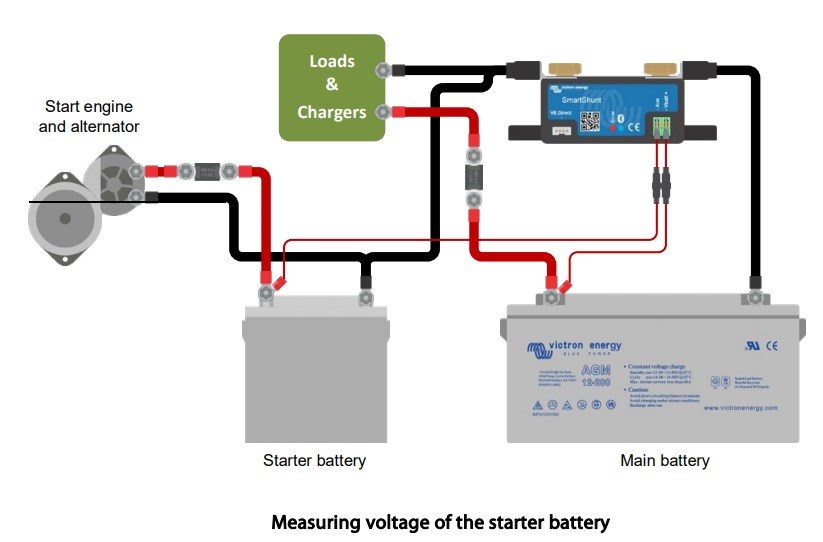

Measures voltage of second battery, or temperature, or midpoint : Yes
Temperature measurement range -20 +50°C
VE.Direct communication port : Yes
RESOLUTION & ACCURACY
Current ± 0,01A
Voltage ± 0,01V
Amp hours ± 0,1 Ah
State of charge (0 – 100%) ± 0,1%
Time to go ± 1 min
Temperature (if optional temperature sensor connected) ± 1°C/°F (0 - 50°C or 30 - 120°F)
Accuracy of current measurement ± 0,4%
Offset : Less than 20 / 40 / 80 mA
Accuracy of voltage measurement ± 0,3%
INSTALLATION & DIMENSIONS Dimensions (h x w x d) 500A: 46 x 120 x 54 mm
Protection category IP21
STANDARDS
Safety EN 60335-1
Emission / Immunity EN-IEC 61000-6-1 EN-IEC 61000-6-2 EN-IEC 61000-6-3
Automotive EN 50498
