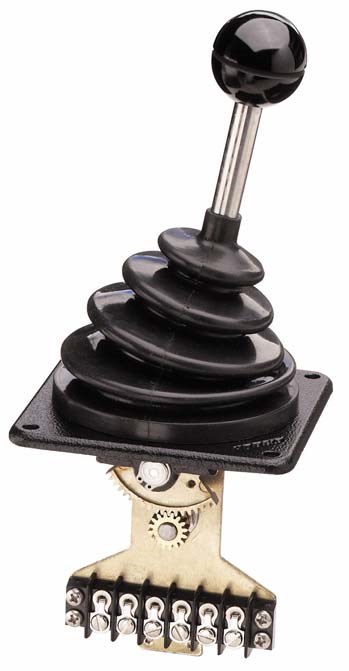

7169 ELECTRO CONTROLLER (MULTI PURPOSE)

unit is ideally suited for many marine and
industrial applications such as bow thruster,
steering gear and winch control, as well as
the control of hydraulic servo devices and
even C.P. propulsion and throttle controls.
Operation of the lever moves the
potentiometer and also contacts a make and
break micro-switch in the mid-position.
The potentiometer can be customer installed
or factory supplied. Various potentiometers
and gear ratios are available to suit customer
requirements. The unit is available in either
spring return to mid-position or neutral detent.
In neutral detent style the lever can be left in
any position.
The unit is compact and all components are
made in bronze or stainless steel which will
give years of trouble-free service.
