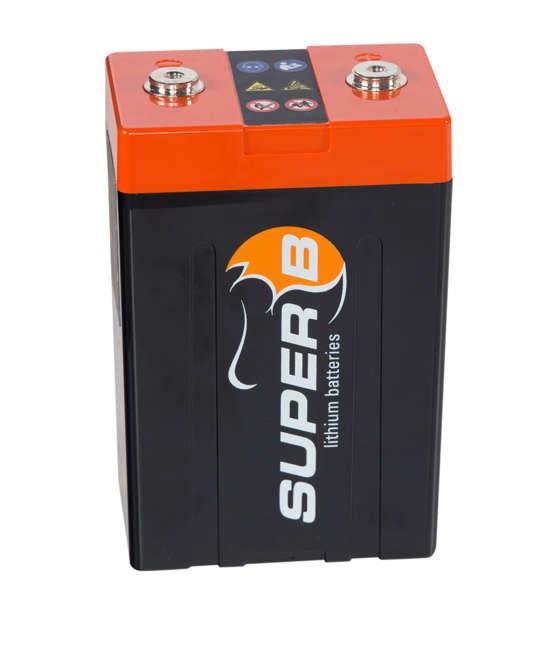

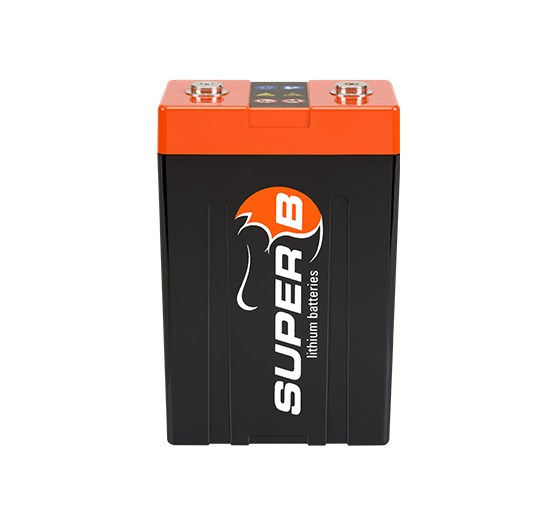

ANDRENA 12V15AH

ELECTRICAL SPECIFICATIONS Nominal capacity:15Ah Open circuit voltage:13.2V Self-discharge:<3% per month Cycle life:>1000 (at 10C discharge, 100% DoD) EqPb (Equals Lead acid battery):40 to 60Ah Voltage:12V MECHANICAL SPECIFICATIONS Dimensions (LxWxH)-120 x 82 x 181mm / 4.72” x 3.23” x 7.13” Weight-2.4 kg / 5.4 lbs Case material-PC - ABS Ingress protection-IP69 Cell type / Chemistry-Cylindrical - LiFePO4 CHARGE & DISCHARGE SPECIFICATIONS Charge method CCCV Charge voltage- 14.3V - 14.6V Max. charge current- 52A End of discharge voltage- 8V Discharge current continuous- 240A Discharge pulse current- 708A (47C) (1 sec) TEMPERATURE SPECIFICATIONS Charge temperature: 0°C to 55°C / 32°F to 131°F Discharge temperature: -30°C to 55°C / -22°F to 131°F Storage temperature: -40°C to 60°C / -40°F to 140°F
