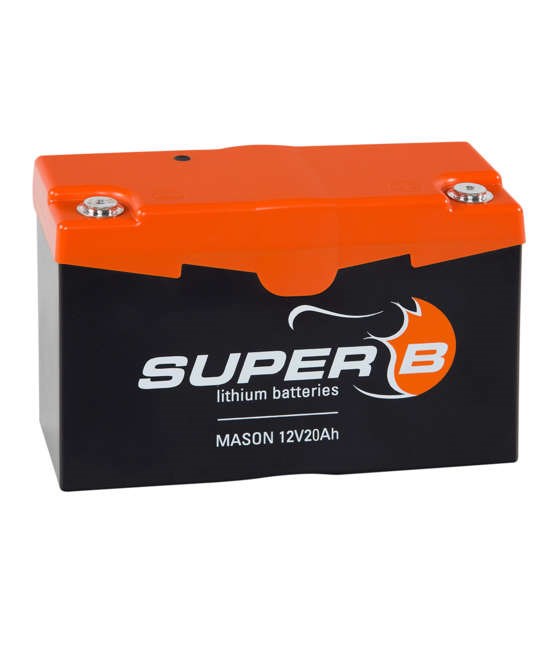

MASON 12V20AH

ELECTRICAL SPECIFICATIONS Nominal capacity:20Ah Open circuit voltage:13.2V Self-discharge:<3% per month Cycle life:>1000 (at 10C discharge, 100% DoD) EqPb (Equals Lead acid battery):70 to 100Ah Voltage:12V MECHANICAL SPECIFICATIONS Dimensions (LxWxH):255 x 101 x 171mm / 10.0” x 4.0” x 6.7” Weight:4.6kg / 10.1lbs Case material: PC - ABS Ingress protection: IP66 Cell type / Chemistry: Cylindrical - LiFePO4 CHARGE & DISCHARGE SPECIFICATIONS Charge method:CCCV Charge voltage:14.3V - 14.6V Max. charge current:66A End of discharge voltage:8V Discharge current continuous:260A Discharge pulse current:892A (45C) (1 sec) TEMPERATURE SPECIFICATIONS Charge temperature: 0°C to 55°C / 32°F to 131°F Discharge temperature: -30°C to 55°C / -22°F to 131°F Storage temperature: -40°C to 60°C / -40°F to 140°F
