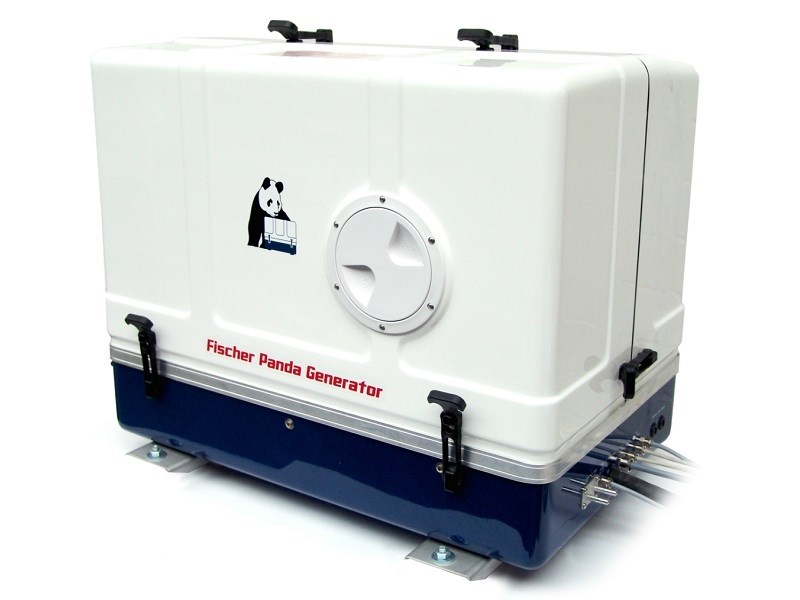

With 3-cylinder water-cooled Kubota 780 ccm diesel engine Type: D782
and water-cooled Fischer Panda alternator
(230V/ 50Hz single phase winding)
Nominal output : 12.9 KW (15.2 KVA at cos phi = 0.85)
Continuous output : 11.6 KW (13.7 KVA at cos phi = 0.85) at 3000 RPM
Complete set includes:
- 12V start system
- 12V/10A alternator for battery charging
- Engine driven cooling water pump
- GRP sound insulation capsule 4DS
(With two layers of heavy lining and two layers of special sound insulation foam)
- Remote X control panel with on /off / preheat / start LCD hour meter and automatic
shut off of the generator in case of alarm
- Exhaust and engine temperature switch
- Oil pressure switch
- Oil temperature switch
- Winding temperature switch
- Fuel shut off solenoid for engine stop
- Fuses for 12V system
- Water-cooled exhaust manifold
- Integrated silencer (no external silencers necessary)
- Air filter
- Patented VCS voltage regulation for 230 V with actuator for output voltage control
- Integrated automatic start booster (ASB) for easier starting of inductive load
- 12 V fuel pump with inline filter and hose connectors
Capsule Dimensions: 1010 x 515 x 634mm.
Weight : 316 kgs.
Sound level : 54db-7m, 64db-3m, 68db-1m
