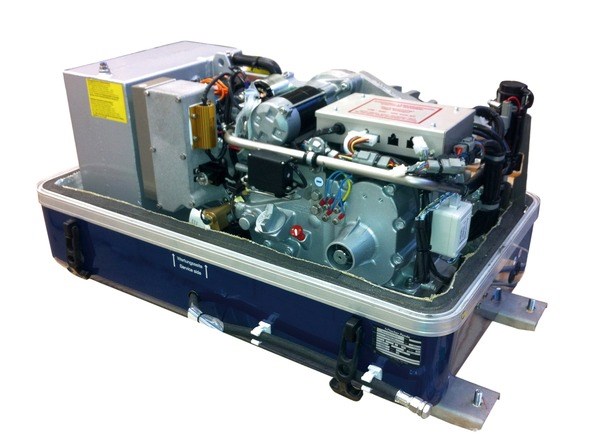

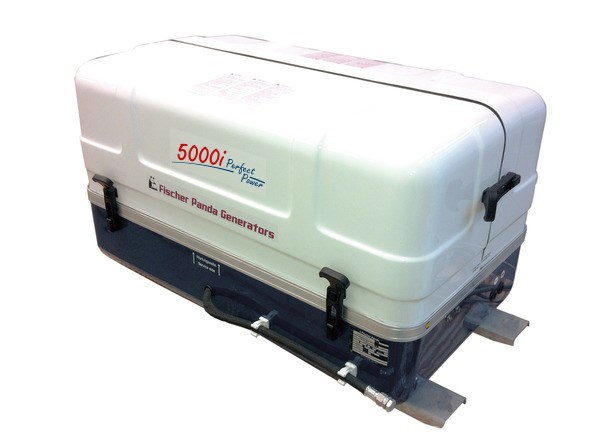

Panda 5000i PVMV-N
With 1-cylinder water-cooled Kubota 309 ccm diesel engine Type: EA 300
and Panda Permanent magnet alternator.
Nominal output : 4 KW @ 2200 - 2800 rpm
Continuous output : 3.5 KW
Voltage Stability : 230V + 3%
Frequency Stability : 50 Hz + 2%
Complete set includes:
-12V start system
-Engine driven cooling water pump
-GFK(Fiber Glass) Sound Insulation Capsule 4Ds.
(With two layers of heavy lining and two layers of special sound insulation foam)
-Exhaust and engine temperature switch
-Oil pressure switch
-Oil temperature switch
-Winding temperature switch
-Fuel shut off solenoid for engine stop
-Fuses for 12V system
-Water cooled exhaust manifold
-Integrated silencer (no external silencers necessary)
-Air filter
-Integrated automatic start booster (ASB) for easier starting of inductive load
-12 V fuel pump with inline filter and hose connectors
- Panda iControl with digital display.
- Panda PMGi Inverter 7.9kg.
Capsule Dimensions : 750 x 420 x 420mm.
Weight : 133 kgs
Sound level : 52db–7m, 64db-3m, 68db-1m
