FIXED CAPACITY HELM PUMP

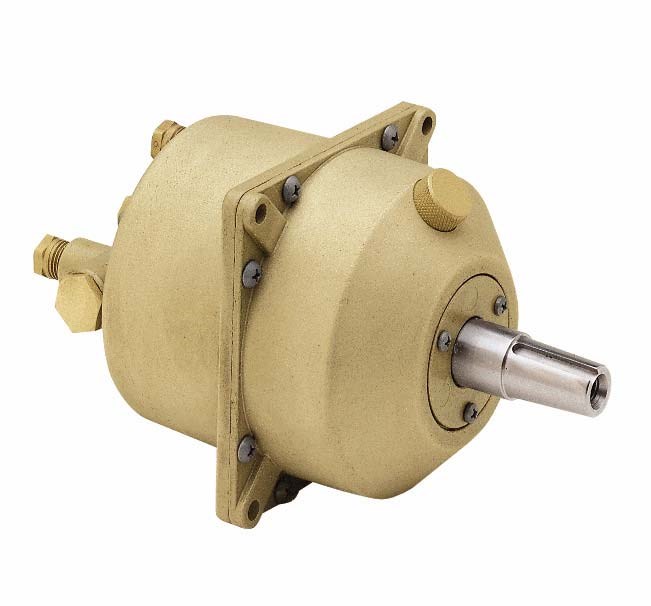

The Model 7031 Helm Pump is a fixed
displacement pump producing 2 cu. in. per
turn. Higher capacity at 2.6 cu. in. per turn
is also available. Incorporated with lock
valves, filler plug and interconnecting plugs,
the pump can be used in multi-station
applications. When used with the Kobelt tilt
up mechanism, this model forms an
excellent choice in the steering system.
Details see our product model 7035.
It is constructed in bronze and stainless
steel for the majority of the components.
Bearings, pistons and pintol are made of
hardened and ground steel. As a result of
the heavy duty design, the unit can be
installed almost anywhere on the boat. It is
a true marine product well covered by the
standard Kobelt warranty. Standard capacity: 2 cu. in. per turn
Nominal working pressure: 1000 psi
