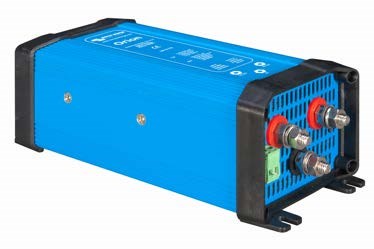

Orion 24/12-70A DC-DC converter IP20

Remote on-off connector
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual).

All models with adjustable output can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.

All models with adjustable output can be paralleled to increase output current
Up to five units can be connected in parallel.

Easy to install
Delivery includes four Insulated Fastons Female Crimp 6.3mm

Specifications:

- Input voltage range (V) 18-35
- Under voltage shutdown (V) 14
- Under voltage restart (V) 18
- Output voltage adjustable with potentiometer yes
- Output voltage (V): Adjustable 10–15V F set 13,2V
- Efficiency (%) 92
- Suitable to buffer-charge a battery : yes
- Can be connected in parallel : yes
- Continuous output current (A)70
- Max. Output current (A) 85
- Operating temperature range(derate 3% per °C above 40°C) -20 to +55°C
- Off load current < 20mA
- Remote on-off yes
- Dimensions hxwxd in mm 65x88x195
- Weight kg: 0,85
