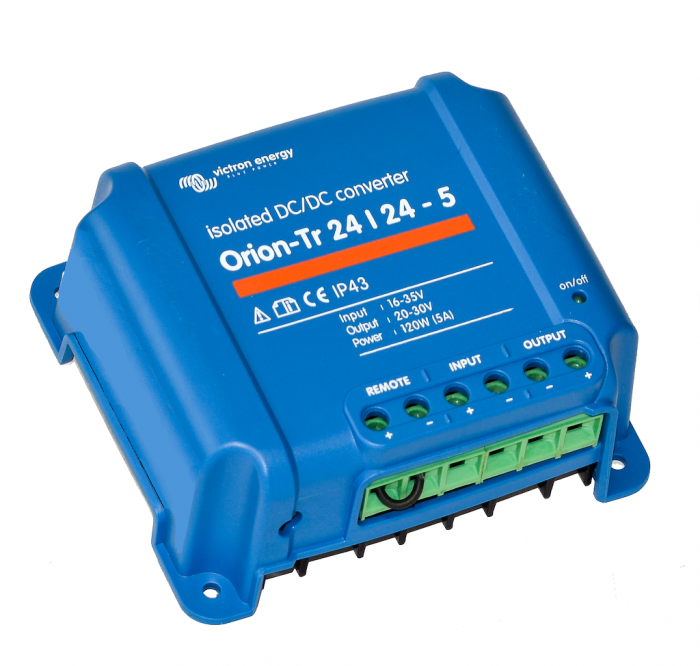

Orion-Tr 24/24-5A (120W) Isolated DC-DC converter

Remote on-off
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off
can be operated with a low power switch or by for example the engine run/stop switch (see manual).

Adjustable output voltage: can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.

All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.

IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.

Input fuse (not replaceable)
On 12V and 24V input models only.

Specification
Input voltage range 20-35V
Under voltage shut down 14V
Under voltage restart 15V
Nominal output voltage 24,2V
Output voltage adjust range 20-30V
Output voltage tolerance +/- 0,2V
Output noise 2mV rms
Cont. output current at nominal output voltage and 40°C 5A
Maximum output current (10 s) at nominal output voltage minus 20% : 6.3A
Short circuit output current 30A
Cont. output power at 25°C 120W
Cont. output power at 40°C 115W
Efficiency 87%
Off load current < 60mA
Galvanic isolation 200V dc between input, output and case
Operating temperature range -20 to +55°C (derate 3% per °C above 40°C)
Humidity Max. 95% non-condensing
DC connection Screw terminals
Maximum cable cross-section 6 mm² (AWG6)
Weight 0.42 kg
Dimensions hxwxd : 100 x 113 x 47 mm
