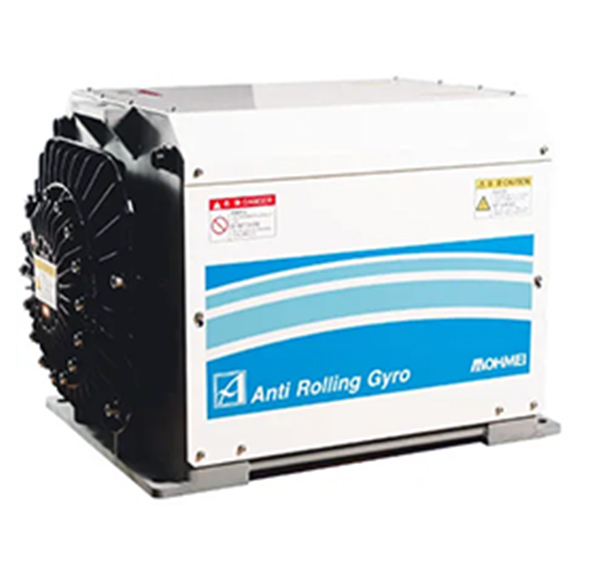

ARG 50T ANTI-ROLLING GYRO(STABILIZER)

Brand: TOHMEI

Category: Anti-rolling gyro

Price on request

Enquiry

ARG 50T(MSM-5000 T ) is the new model developed for small boats such as centre console boats.

ARG50T covers approx. 10tons displacements(depending on GM of the boat)
It is the smallest ARG can be used with DC battery.
Anti rolling torque : 5000Nm max
Rated RPM : 3200rpm
Angular moment at rated RPM : 1000Nm sec
Spool-up time to rated RPM : 30minutes
Spool up power AC motor : 1.0Kva
Operating power AC motor : 0.7Kva
Input voltage :DC 12V
Weight : 236kg

Envolope dimensions :
Gyro : 525(height) x 750(width) x 520(depth) mm
Motor Driver(inverter) : 290(height) x 340(width) x 235(depth) mm

ARG 65 and 50T
