ARG250T Anti-rolling gyro (stabilizer)

Brand: TOHMEI

Category: Anti-rolling gyro

Price on request

Enquiry

Using a Tohmei Anti Rolling Gyro (ARG) will keep the "Luxury" in your Luxury Yachting experience.

The Tohmei Anti Rolling Gyro (ARG) will make your next fishing experience safer, more productive and enjoyable by minimizing trolling and zero speed roll.

A Tohmei Anti Rolling Gyro (ARG) is a great investment for any commercial vessel. The ARG is now available for the commercial sector providing low and zero speed stabilization.

Provides a comfortable setting for dining and entertaining.
Sleep in comfort at the dock or anchored out.
Keeps your vessel steady when docking.
Effective at trolling and at ‘zero’ speeds.
With the Tohmei ARG, you can expect the lowest maintenance in the industry
Allow crew and guests to move around safely and enjoy themselves.
There are no through hull protrusions that produce drag on your vessel. It is a one piece ‘bolt on’ package.
Installing the Tohmei ARG adds to the resale value of your yacht.

The ARG stabilizer is easy to install. Just bolt it down to your boat and plug it in! The Tohmei ARG stabilizer is the original ‘Anti Rolling Gyro’ stabilizer. The technology was developed by Mitsubishi originally for the space satellite. Tohmei stands alone as the LEADER in ROLL REDUCTION TECHNOLOGY for pleasure and commercial craft in the world.

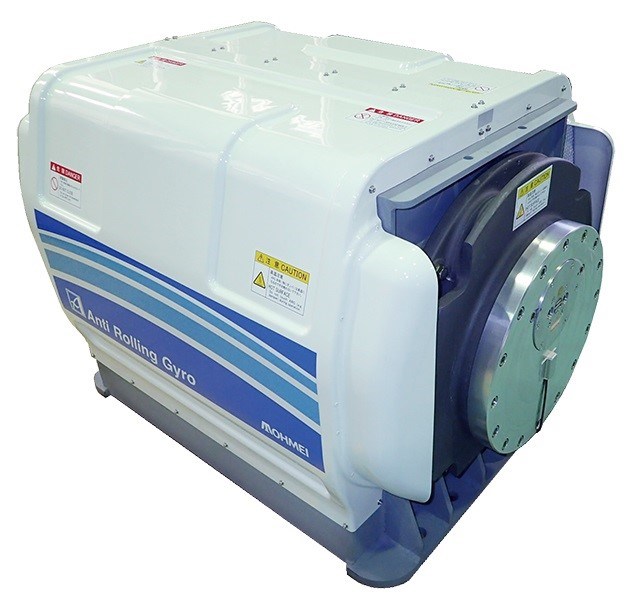

The ARG250T (MSM-25000T-A1) is the intermediate sized model and flagship of the ARG series. ARG250T covers up to a displacement of 40tons.(depending on GM of the boat). By installing multiple units ,ARG250T can be installed in larger vessel such as 80ft or up to 130ft. Anti rolling torque : 25000Nm max Rated RPM : 3750rpm Angular moment at rated RPM : 5000Nm sec Spool-up time to rated RPM : 40minutes Spool up power AC motor : single phase 4.8kw/three phase 4.3kw Operating power AC motor : single phase 3.5kw/three phase 3.0kw Input voltage : single phase 220-240V 50/60Hz/three phase 200-240v,50/60Hz Weight : 700kg Envolope dimensions : Gyro : 1020(length) x 720(width) x 700(Height) mm Motor Driver(invertor) : 400(height) x 350(width) x 187(depth) mm
