SS Expansion joints Bellow DN40-400 Balance-V

Brand: LOGGERS
Category: SS expansion bellows

Price on request

Enquiry

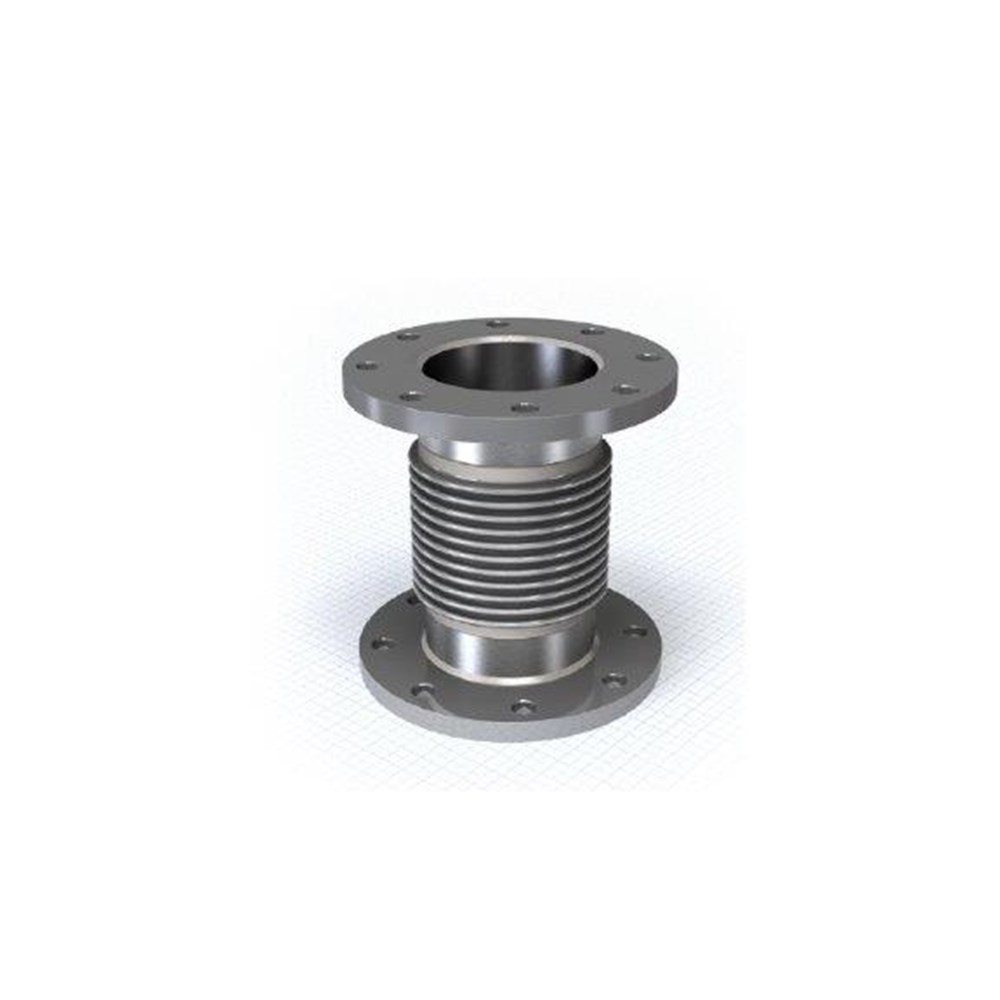

The balance V is a stainless steel expansion joint with fixed carbon steel flanges according to DIN PN 10. it is used for compenating movements and misalignments in exhaust system in situations with relatively small lateral movements.Due to the double ply bellows this compensator is more flexible in comparision to similar single ply compensators.The maximum operating temperature of the balance v is +550 degree C , the maximum working pressure 2.5bar (20 degree C.) SS expansion joints AISI321,Double ply bellows Carbon steel weld ends.

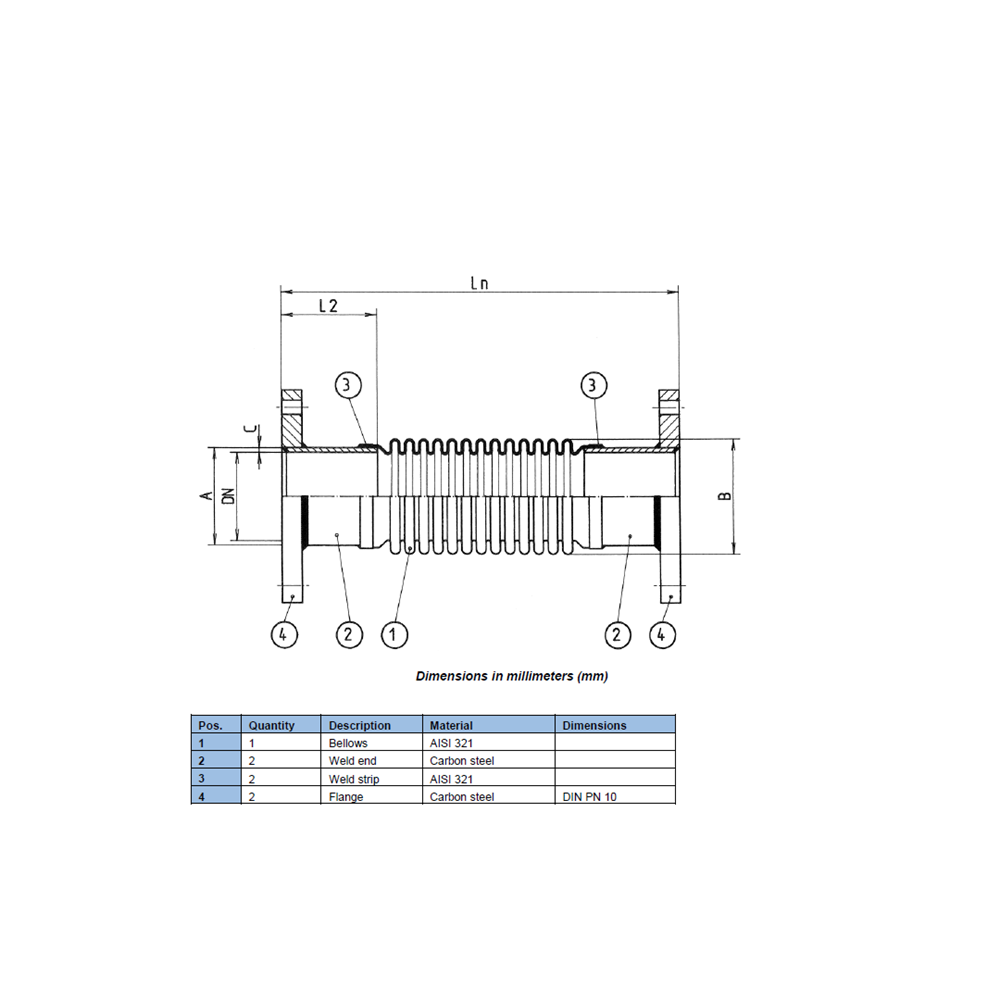

SS expansion joints AISI321,
Double ply bellows
Standard length
Fixed carbon steel flanges PN10
