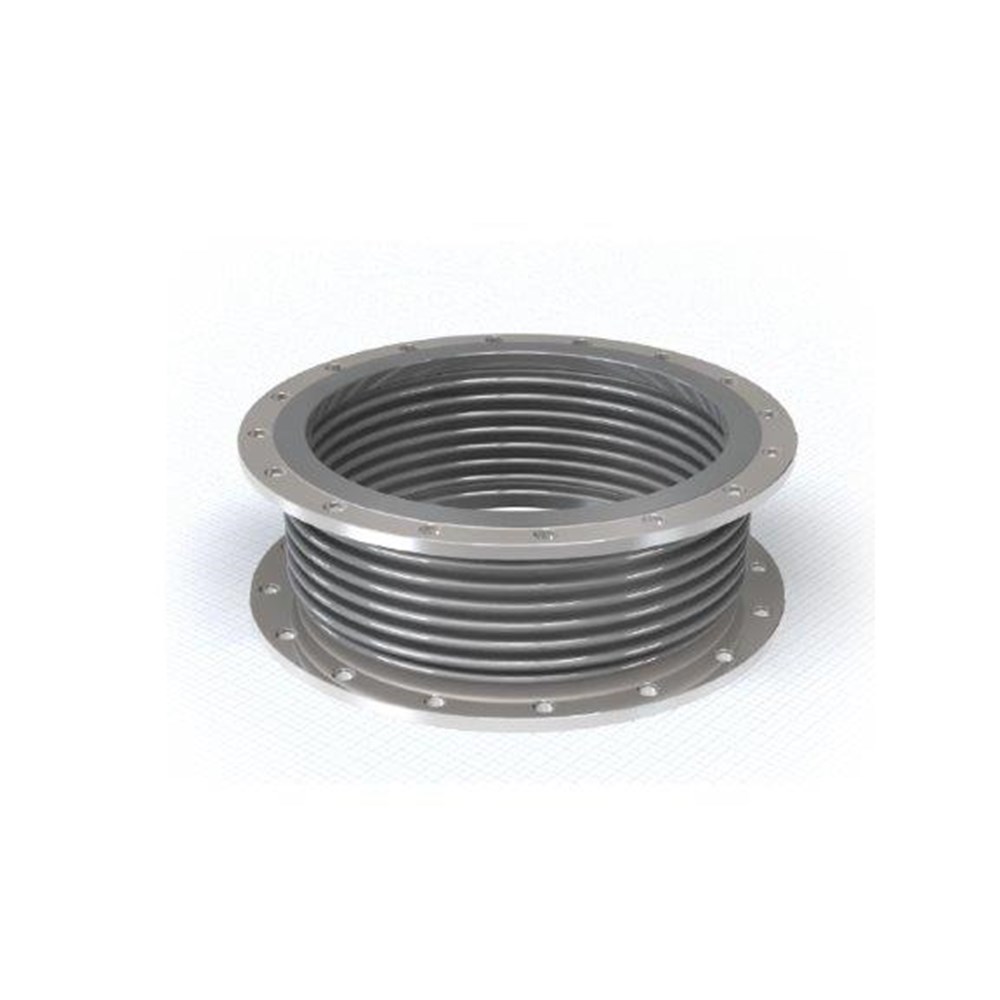

SS Expansion joints Bellow DN80-1200 Balance-VIII

The Balance VIII is relatively short stainless steel expansion joint with rotatable flanges,It is used for compensating movements and misalignment in exhaust systems in situations with limited installation space. Due to the double ply bellows and rotatable flanges this compensator is still able compensate relatively large movements . The Balance VIII is supplied at pre-stressed length in order to reduce the reaction forces to the foundation in operating conditions(high temperature). The maximum operating temperature of the balance VIII is +550 degree C , the maximum working pressure 2.5bar (120 degree C.)

SS expansion joints AISI321,
Double ply bellows.

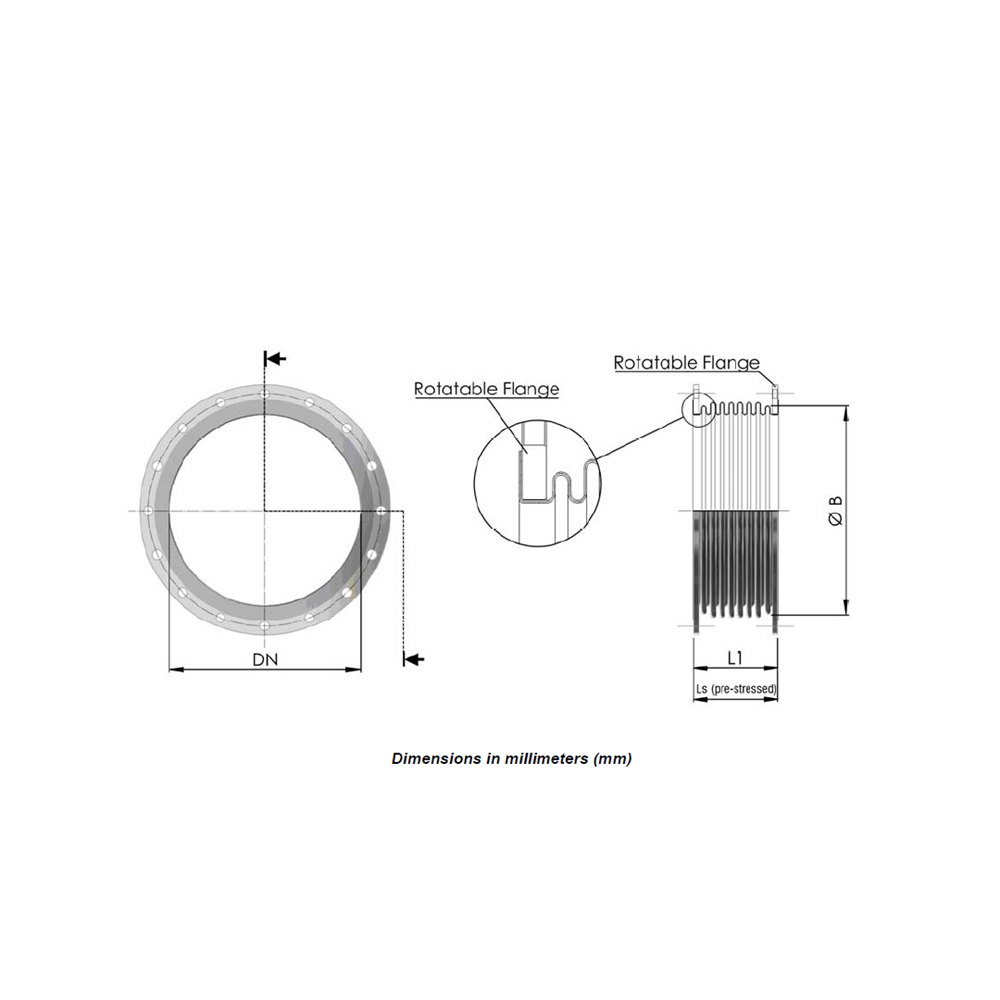

with rotatable flanges acc.DIN 86044
Standard length.
Alternative flange dimensions available.
