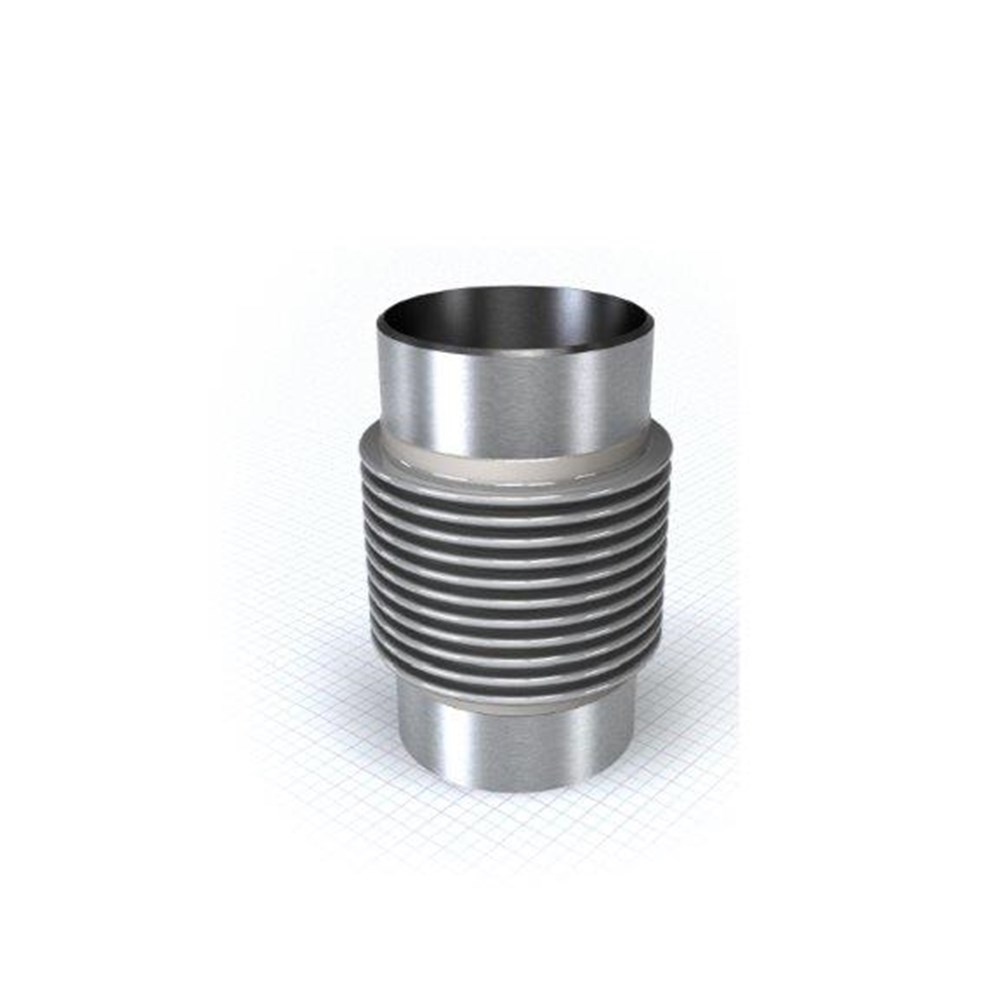

SS Expansion joints Bellow DN40-600 Balance-VII

Brand: LOGGERS

Category: SS expansion bellows

Price on request

Enquiry

The Balance VII is stainless steel expansion joint with SS steel weld ends,It is used for compensating movements and misalignment in exhaust systems in situations with relatively small lateral movements. Due to the double ply bellows this compensator is more flexible in comparison to similar single ply compensators. The maximum operating temperature of the balance VII is +550 degree C , the maximum working pressure 2.5bar (20 degree C.) SS expansion joints AISI316TI, Double ply bellows, SS steel weld ends.

SS expansion joints AIS361 TI,Double ply bellows
SS steel weld ends 316 TI.
Standard length

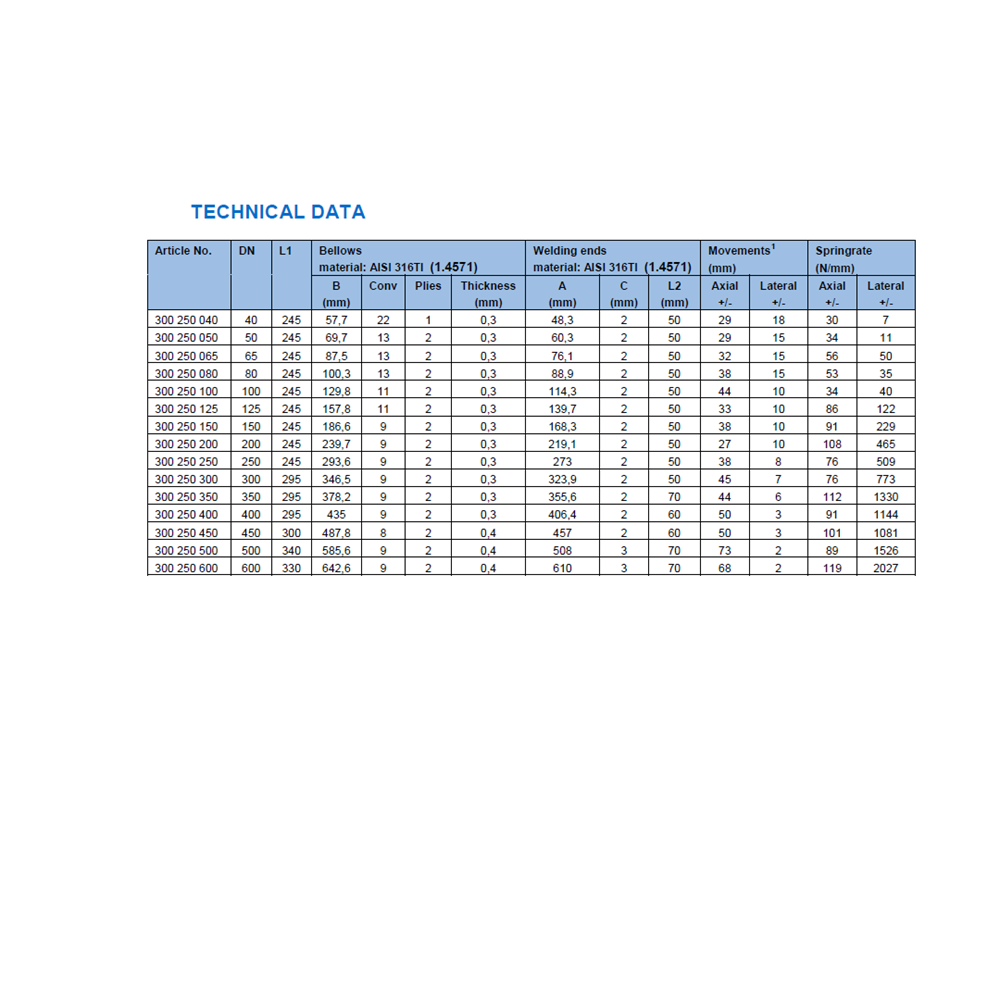

Balance VII DN40-600
